Tescom 44-1862-24S
SKU: 8007
Brak w magazynie

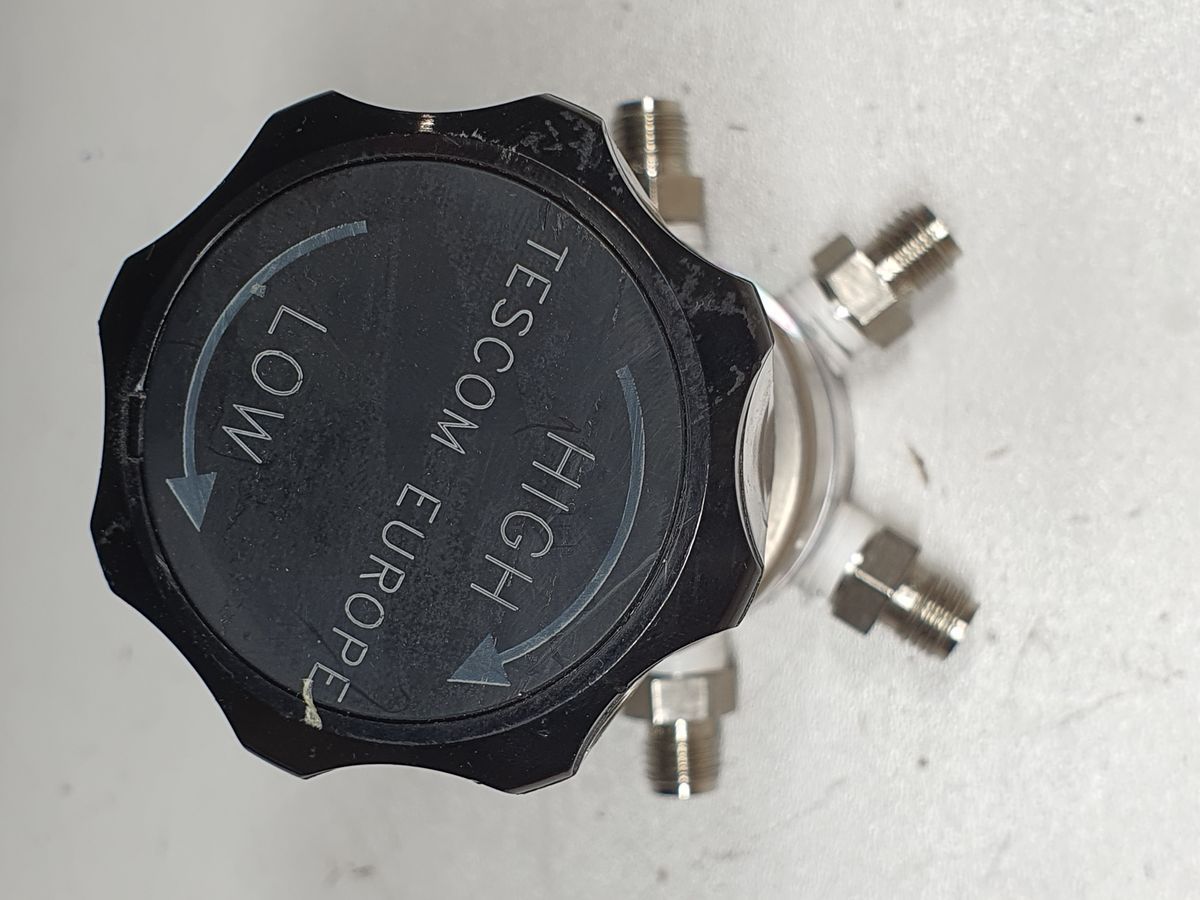

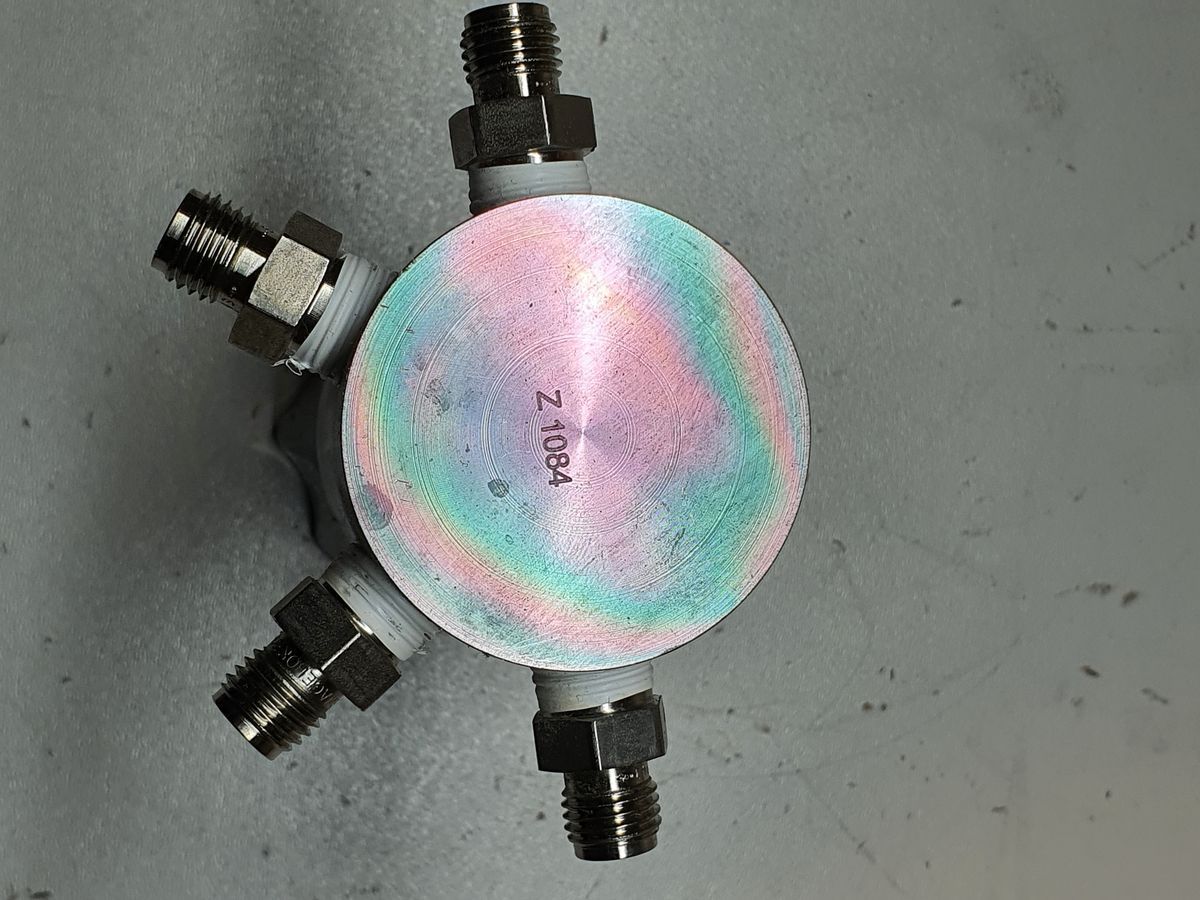

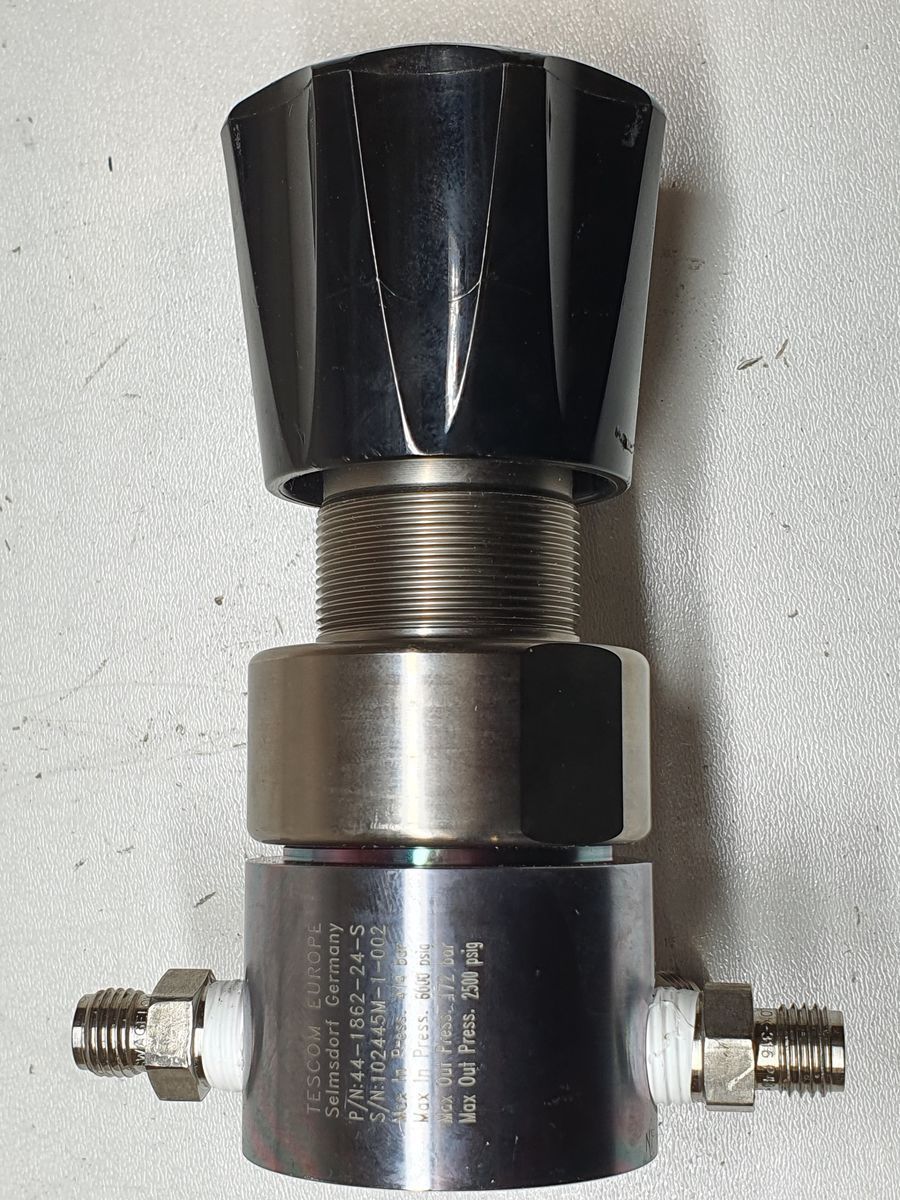

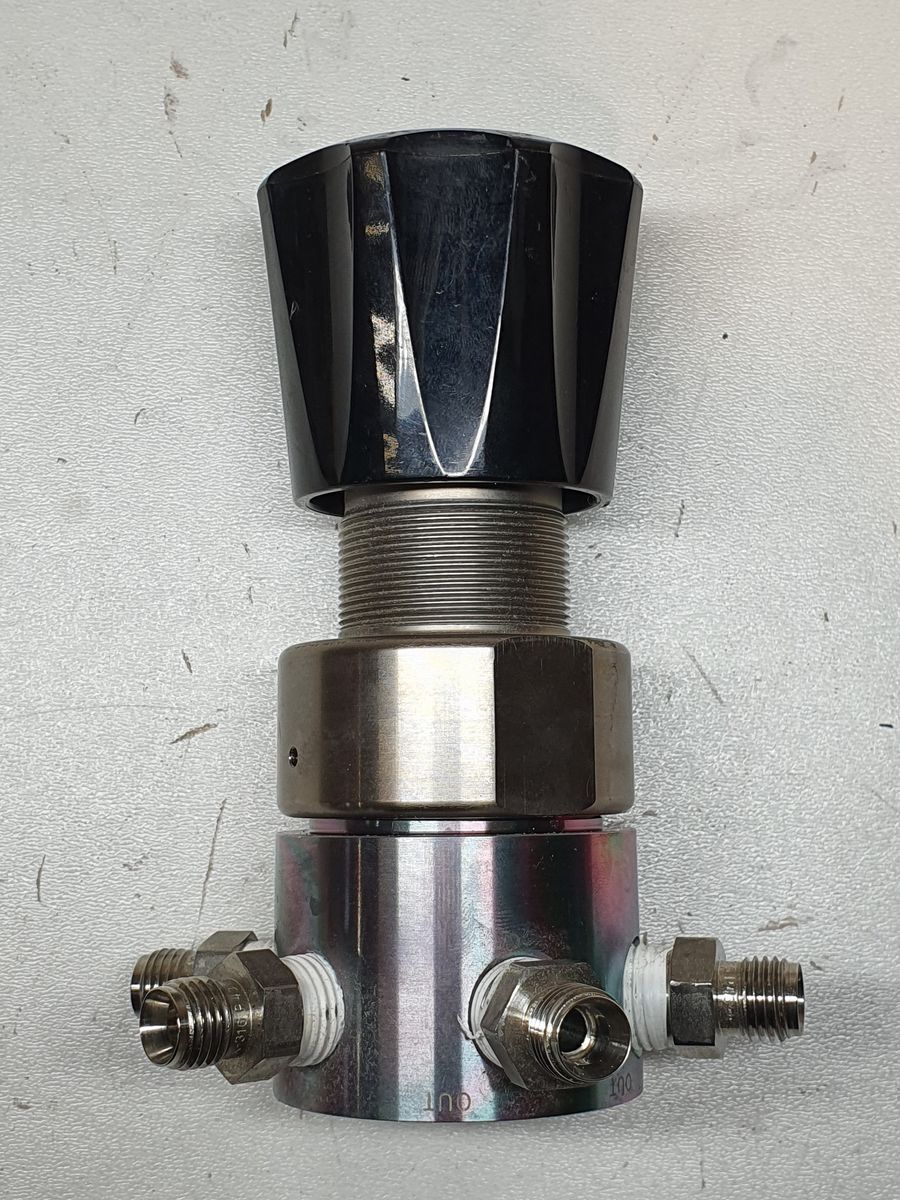

Tescom 44-1862-24S single-stage, pressure-reducing regulator
| Category | Parameter | Specification |
|---|---|---|
| Operating Parameters | Model | 44-1862-24 |
| Series | Tescom 44-1800 Series | |
| Regulator Type | Single-stage, pressure-reducing | |

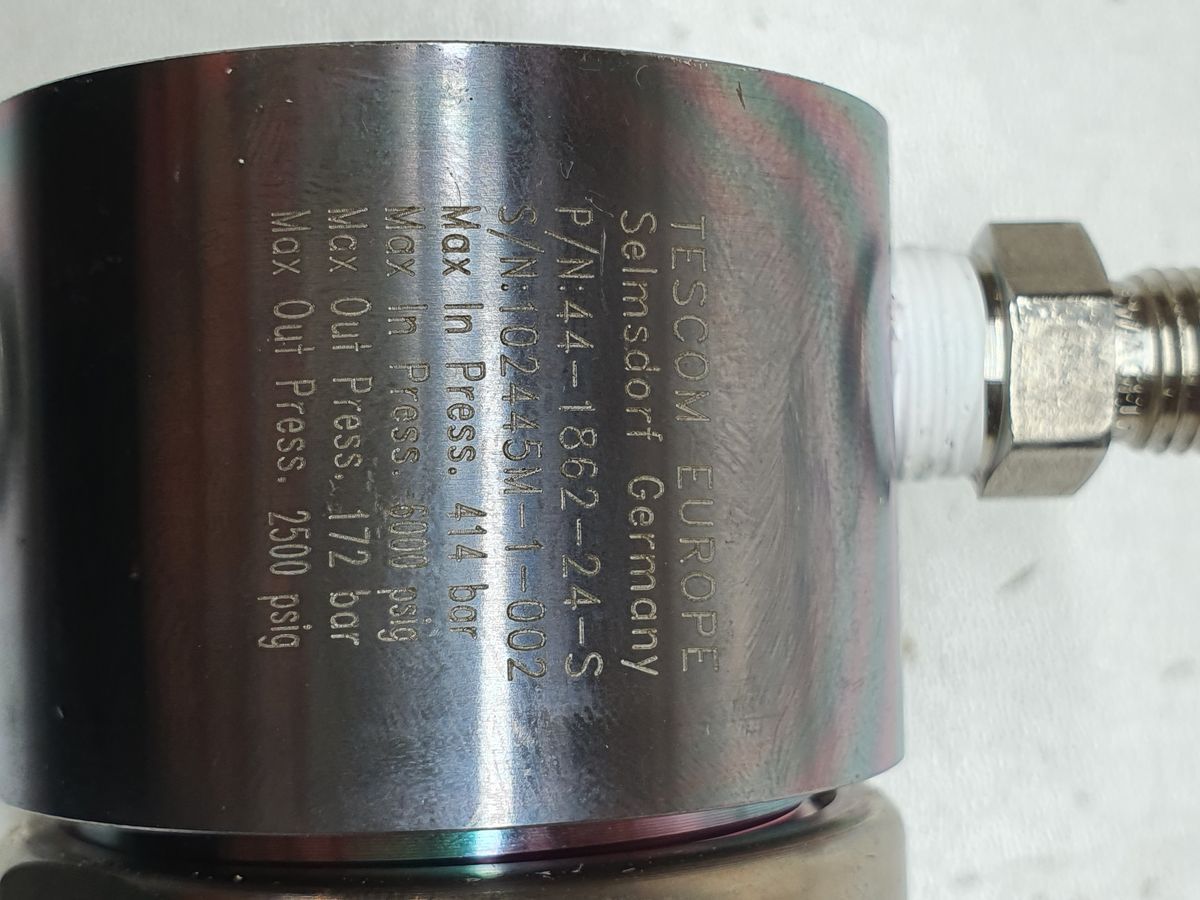

| Maximum Inlet Pressure | 414 bar / 6000 psi | |
| Rated Outlet Pressure Range | 0–172 bar / 0–2500 psi | |
| Flow Capacity | Cv = 0.06 (at 3500 psig inlet) | |
| Internal Leakage | Bubble tight (internal) | |
| Proof Pressure | 150 % of maximum rated | |
| Materials & Ports | Body Material | Brass |
| Seat Material | Teflon (PTFE) / Viton® (FKM) | |
| Diaphragm Material | 316 Stainless Steel or Elgiloy® (depending on configuration) | |

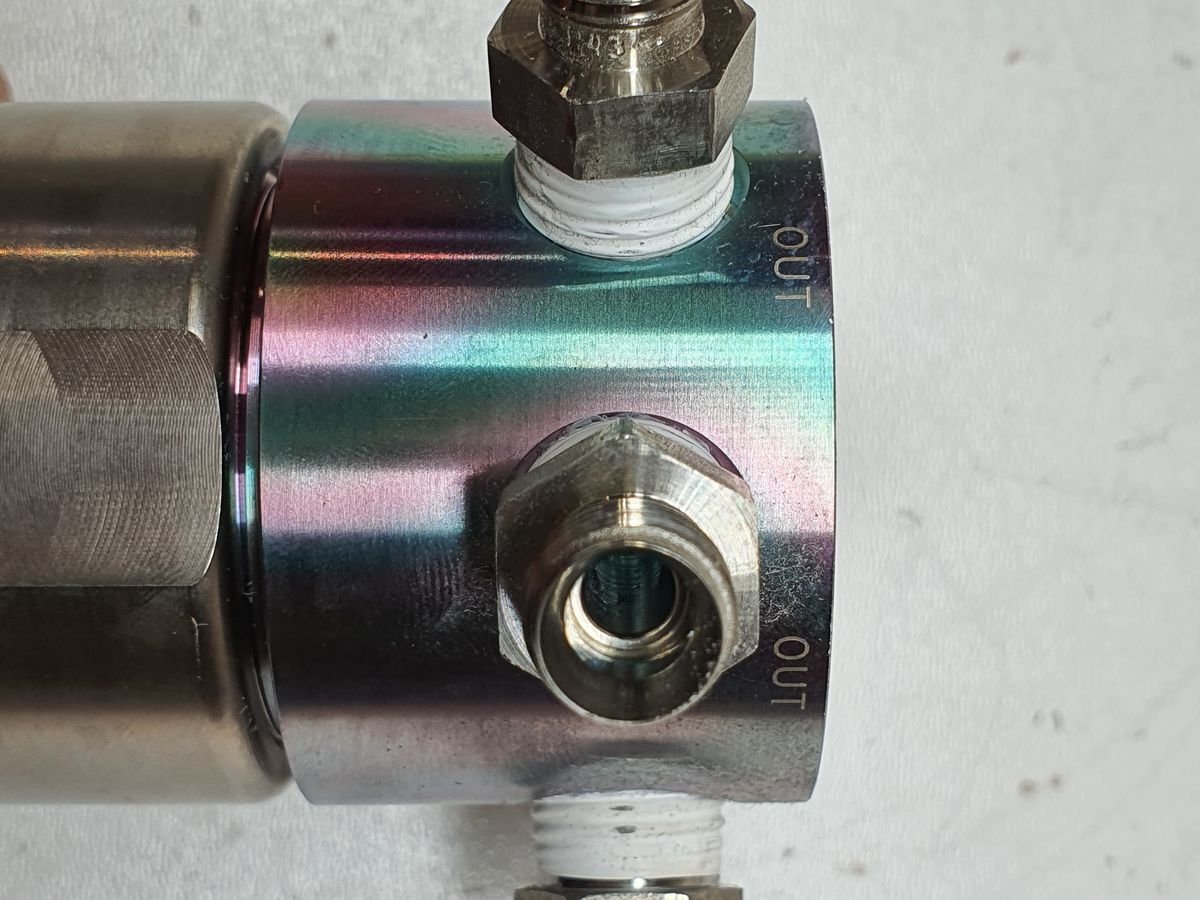

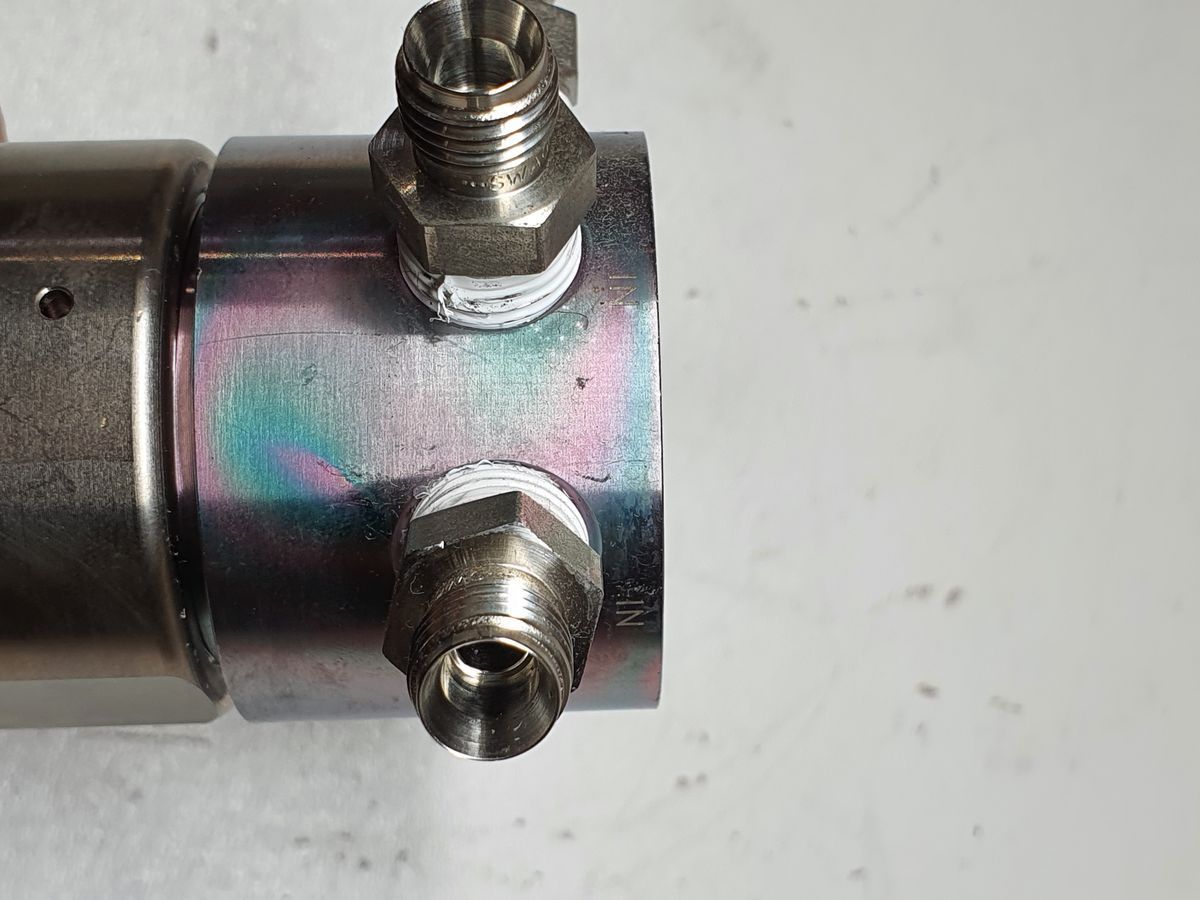

| Port Size / Type | 1/4″ NPT(F) | |
| Weight | Approx. 0.9 kg / 2 lbs (without gauges) | |
| Environmental | Operating Temperature | −40 °C to +74 °C (−40 °F to +165 °F) |
| Compliance | Designed to meet ANSI/ASME B31.3 pressure equipment criteria |
×
![]()
