Tescom 44-1165-24-023

SKU: 8019

Brak w magazynie

Cena na żądanie

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

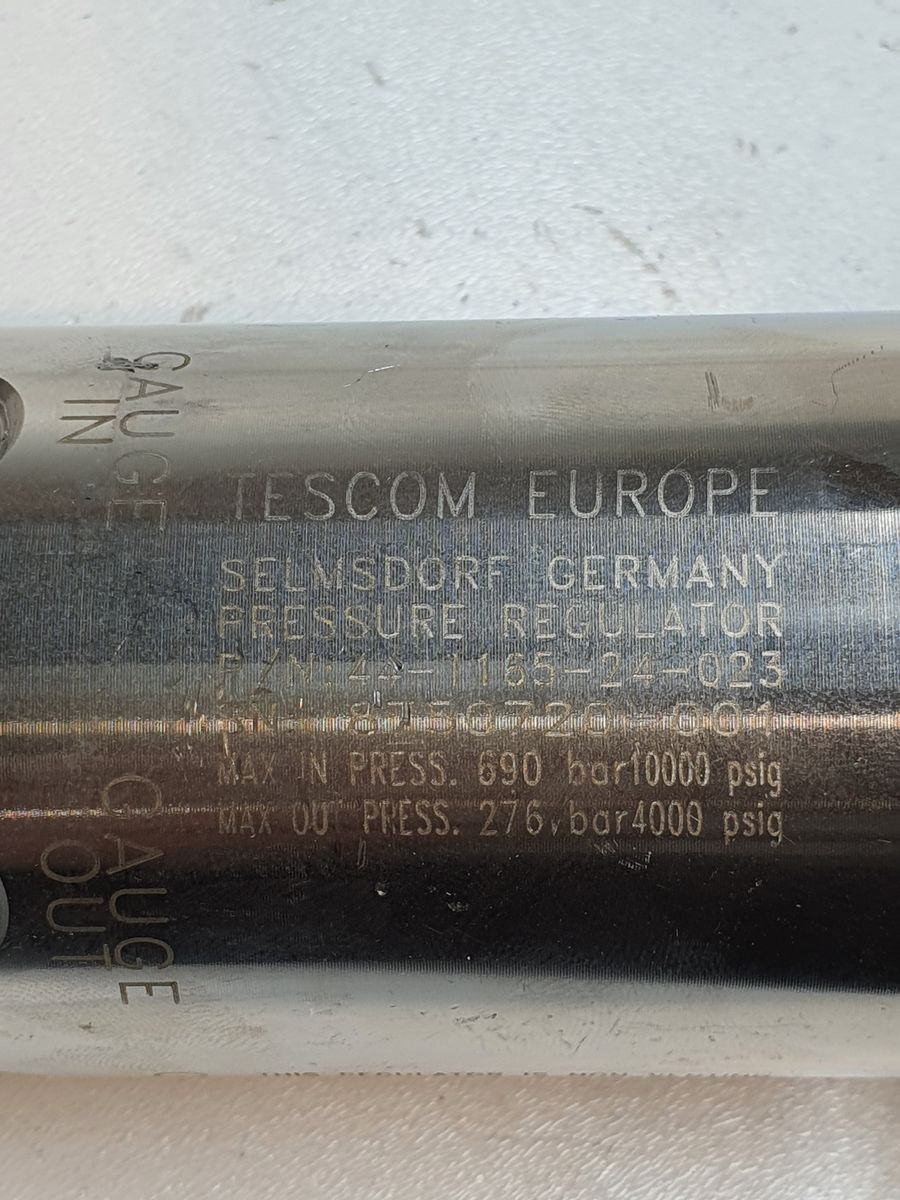

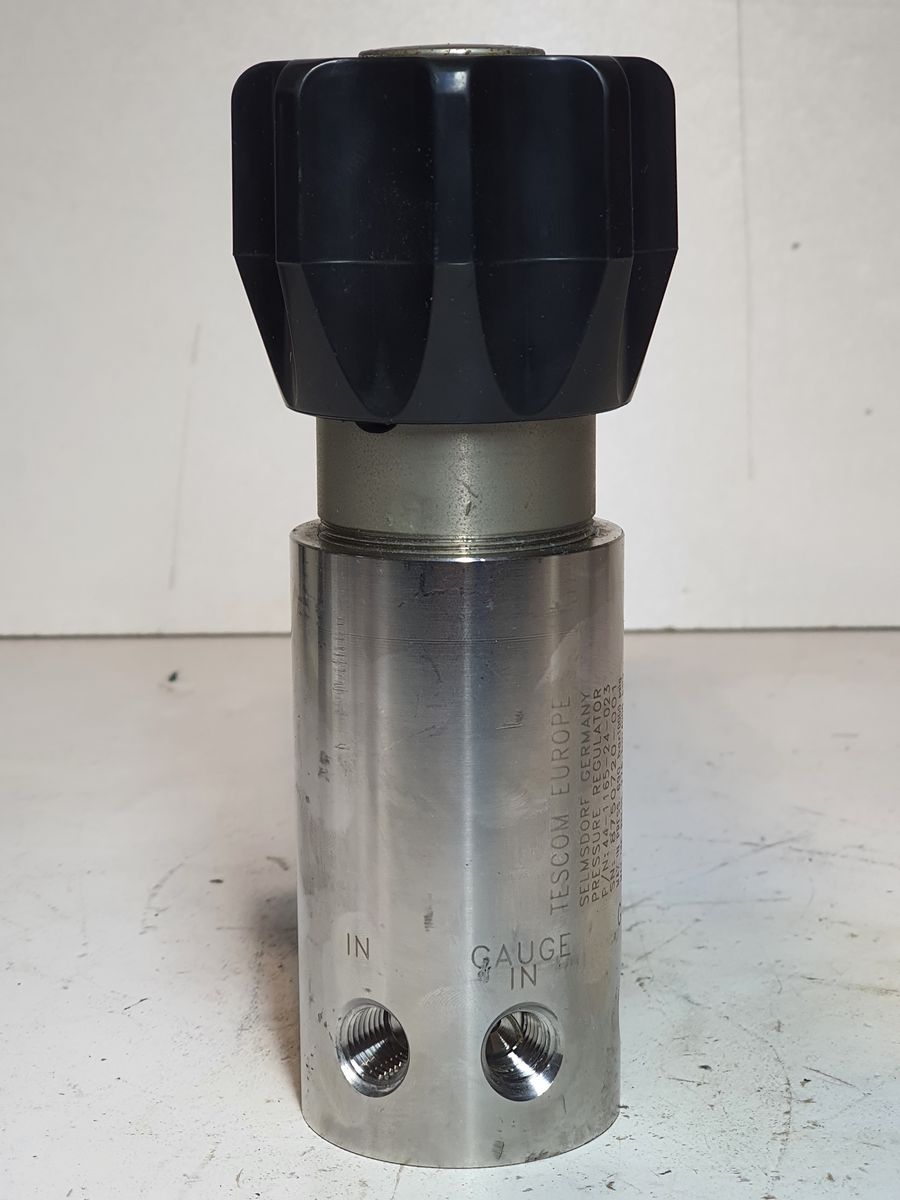

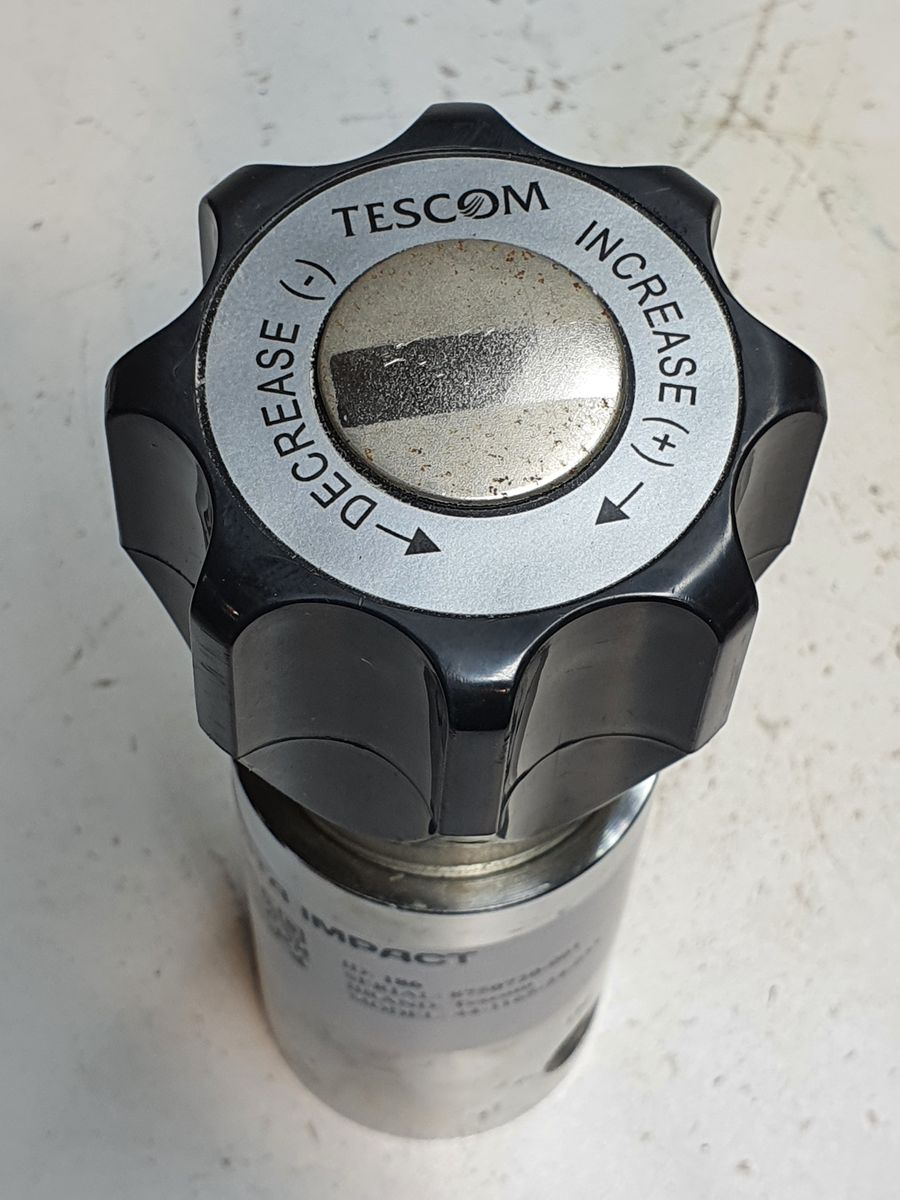

TESCOM 44-1165-24-023

Specification Table

Parameter	Details
Series	TESCOM 44-1100 Series Pressure Regulator Control
Model / Part Number	44-1165-24-023
Function	Pressure Reducing Regulator (Venting Type)
Maximum Inlet Pressure (Stainless Steel Body)	10,000 psig (690 bar)
Maximum Outlet Pressure	4,000 psig (276 bar)
Design Proof Pressure	150% of maximum rated pressure
Leakage	Bubble-tight
Operating Temperature	–40°F to 165°F (–40°C to 75°C)
Flow Capacity (Cv)	0.06
Maximum Operating Torque	Approx. 35 in-lb (3.95 N·m)
Body Material	316 Stainless Steel
Main Valve Seat Material	Polyimide (Vespel®)
Vent Valve Seat Material	CTFE
O-Ring Material	Buna-N
Back-Up Ring Material	PTFE
Filter Material	15 μm nominal (316 Stainless Steel)
Remaining Internal Parts	300 Series Stainless Steel
Port Size & Type	1/4″ NPTF (female)
Load Type	Spring-loaded
Weight (Approx.)	4.8 lb (2.2 kg)
Standard Features	Piston-sensed design, vent-to-zero capability, inlet and outlet gauge ports
