Siłowniki pneumatyczne
Swagelok SC00015-3U F04-N-DS-11 AZNX MS-A15-3 DIN
SKU: 4018
Brak w magazynie

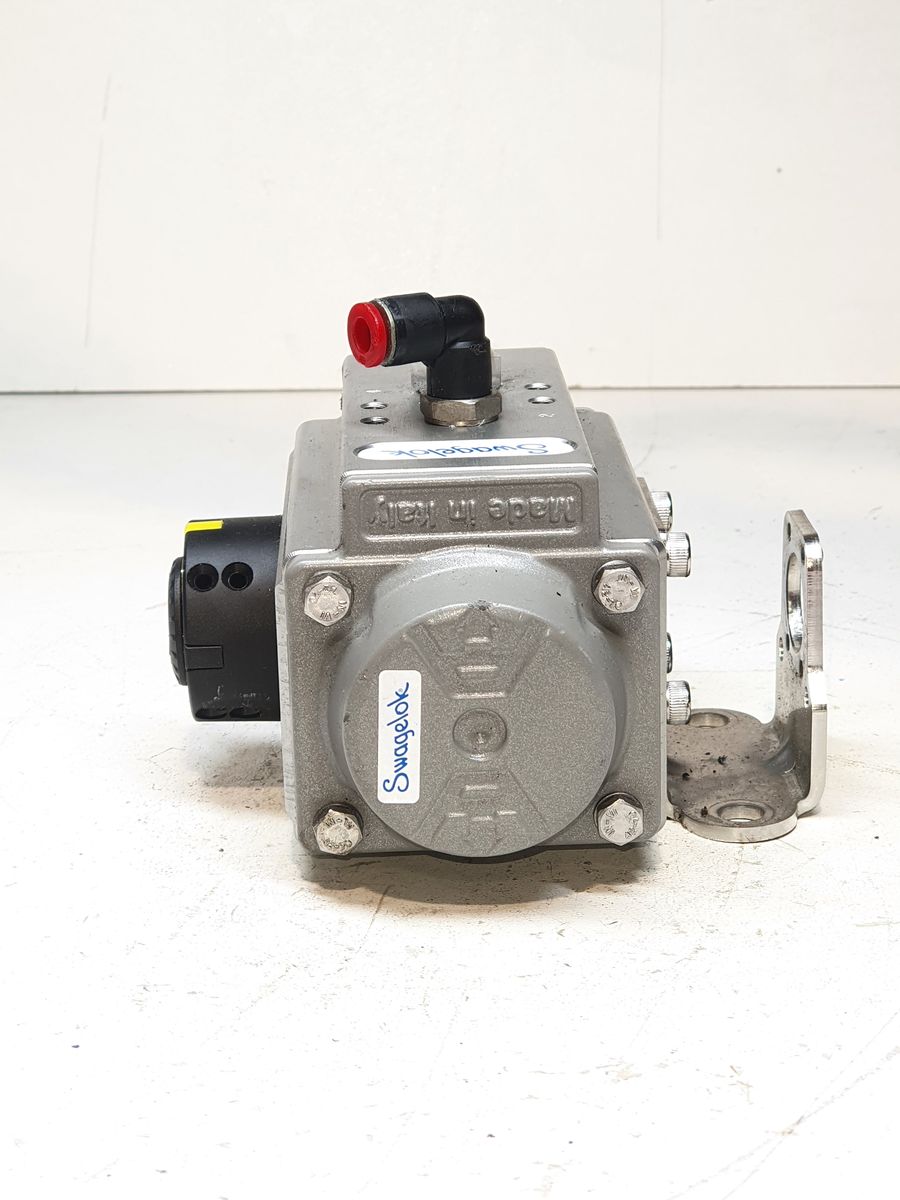

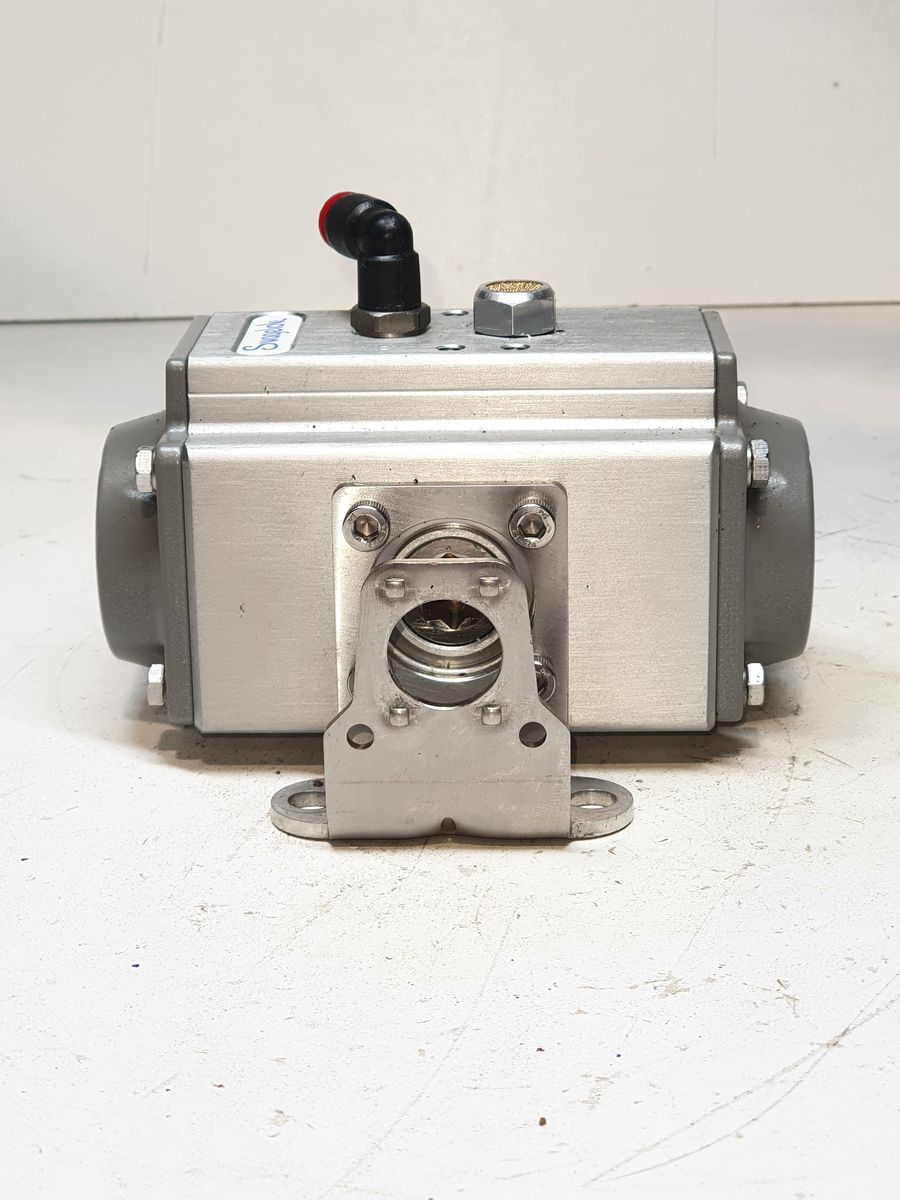

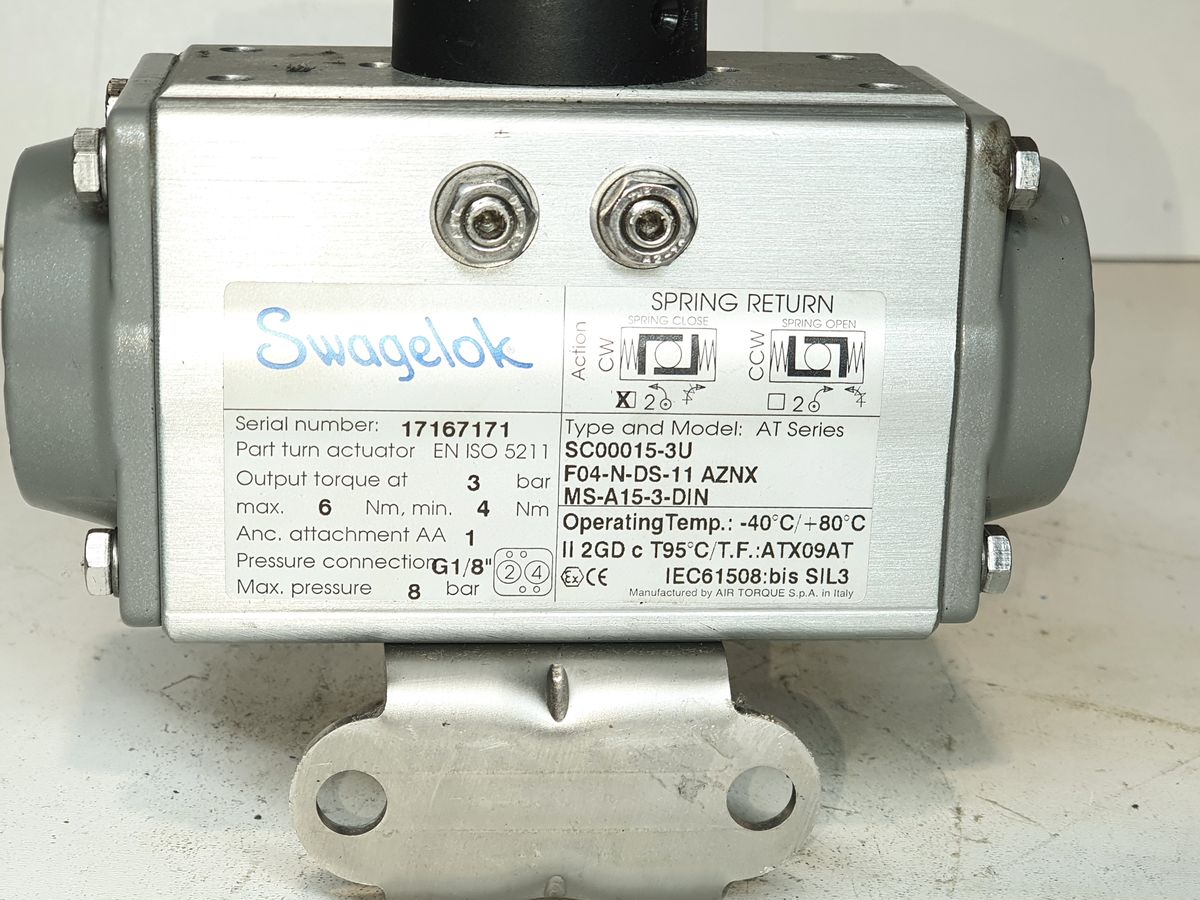

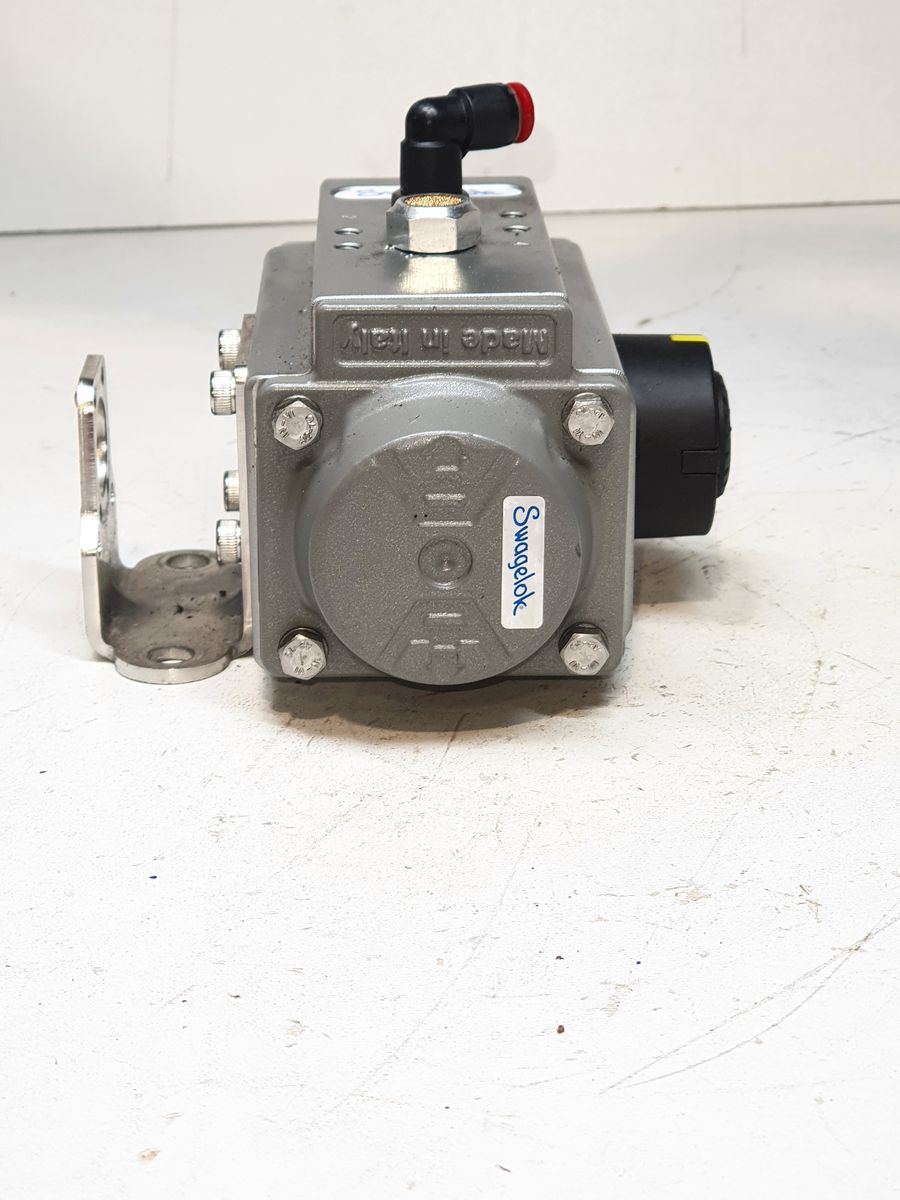

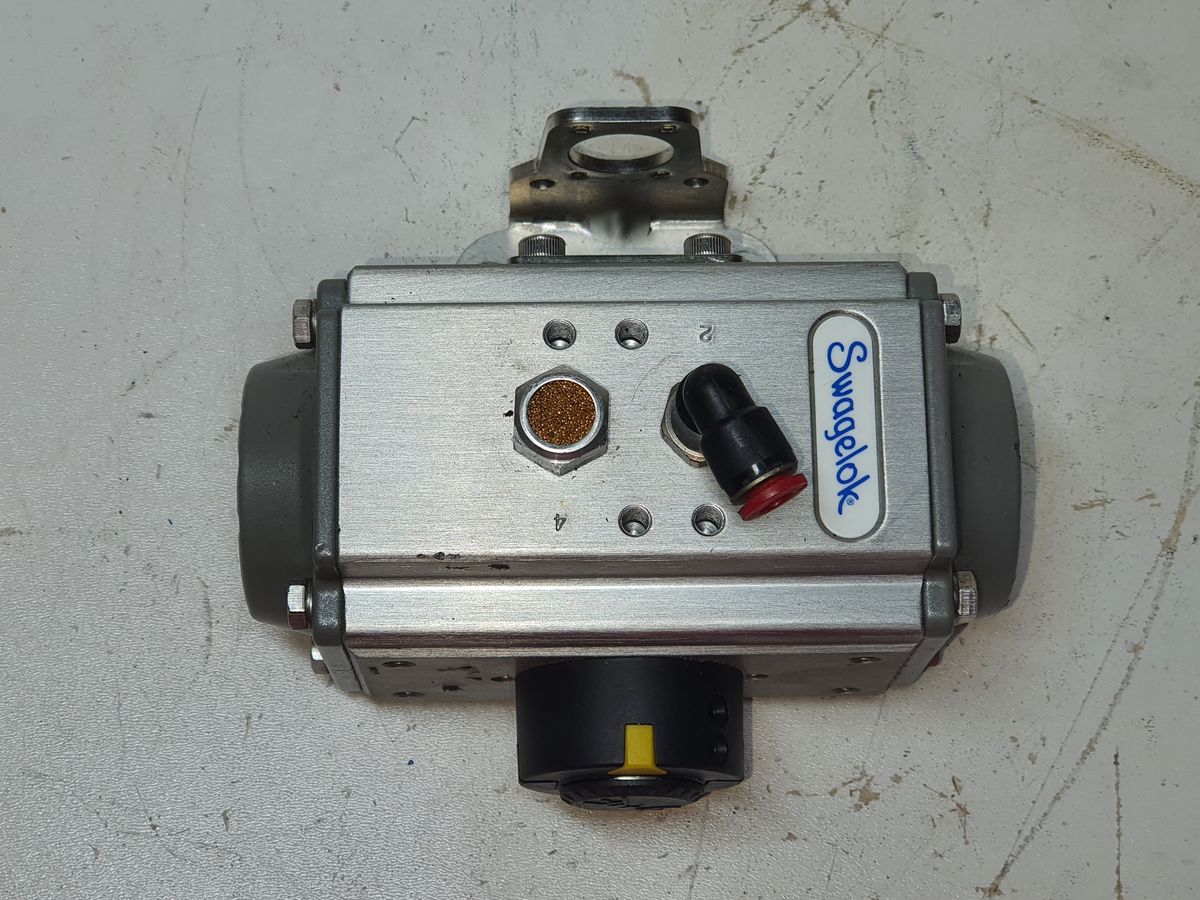

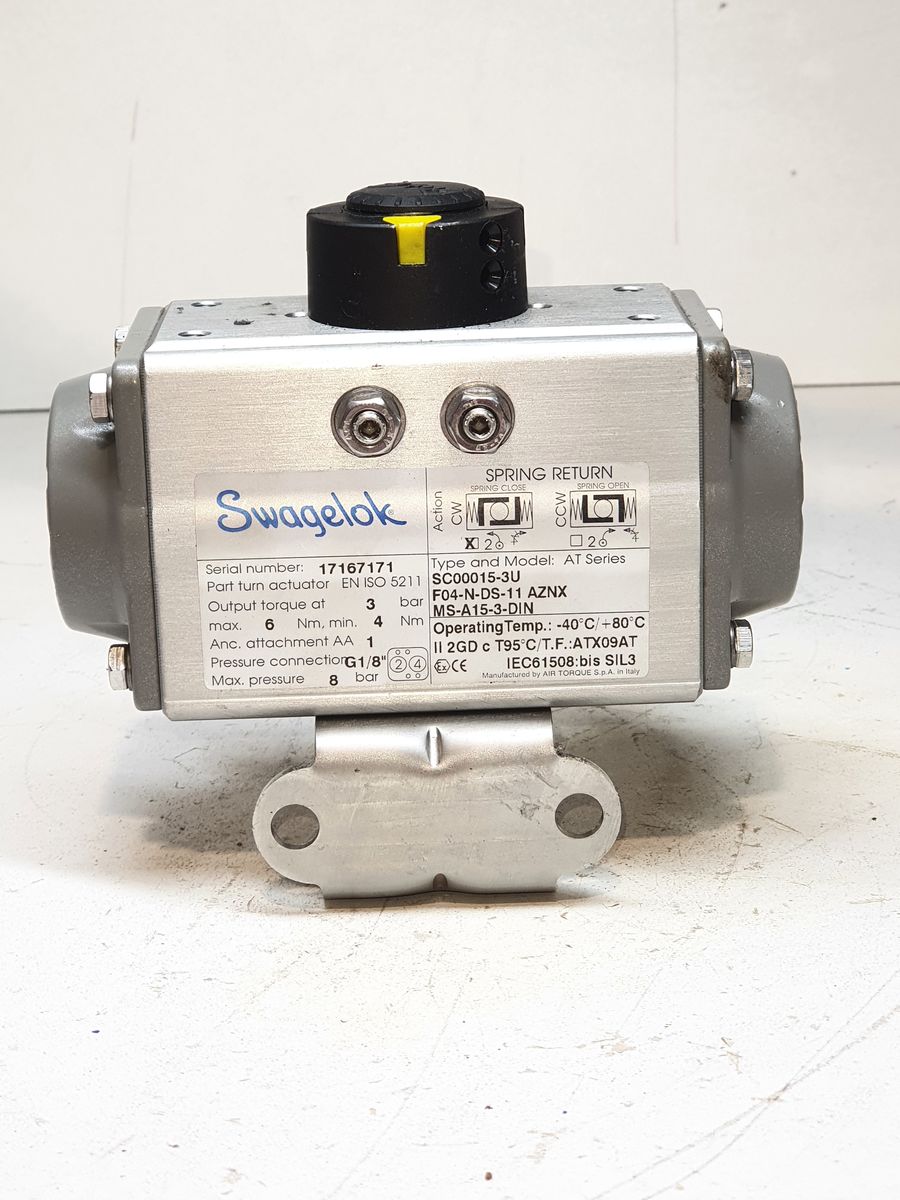

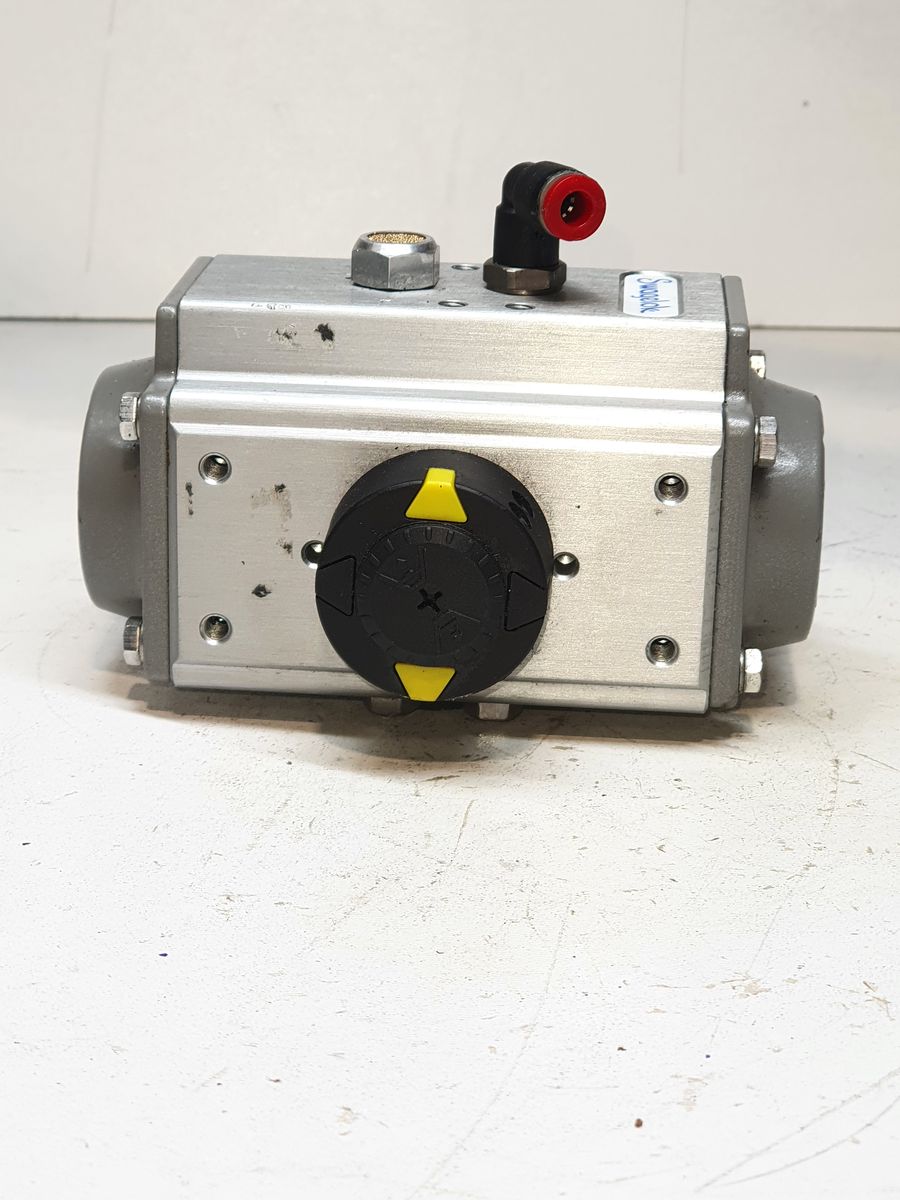

Swagelok SC00015-3U Pneumatic Actuator
| Category | Parameter |
|---|---|
| Manufacturer | Air Torque S.p.A. (Italy) |
| Brand / Series | Swagelok AT Series |
| Type | Pneumatic part-turn actuator |
| Operation | Spring return (spring close / spring open) |
| Rotation Angle | 90° (quarter turn) |
| Output Torque | Minimum: 4 NmMaximum: 6 Nm |
| Maximum Operating Pressure | 8 bar |
| Air Connection | G 1/8" |
| Mounting Standard | EN ISO 5211 |
| Ambient Temperature Range | −40 °C to +80 °C |
| ATEX Classification | II 2GD c T95°C / T.F. ATX09 AT |
| Safety Integrity Level | IEC 61508 – SIL 3 |
×
![]()
