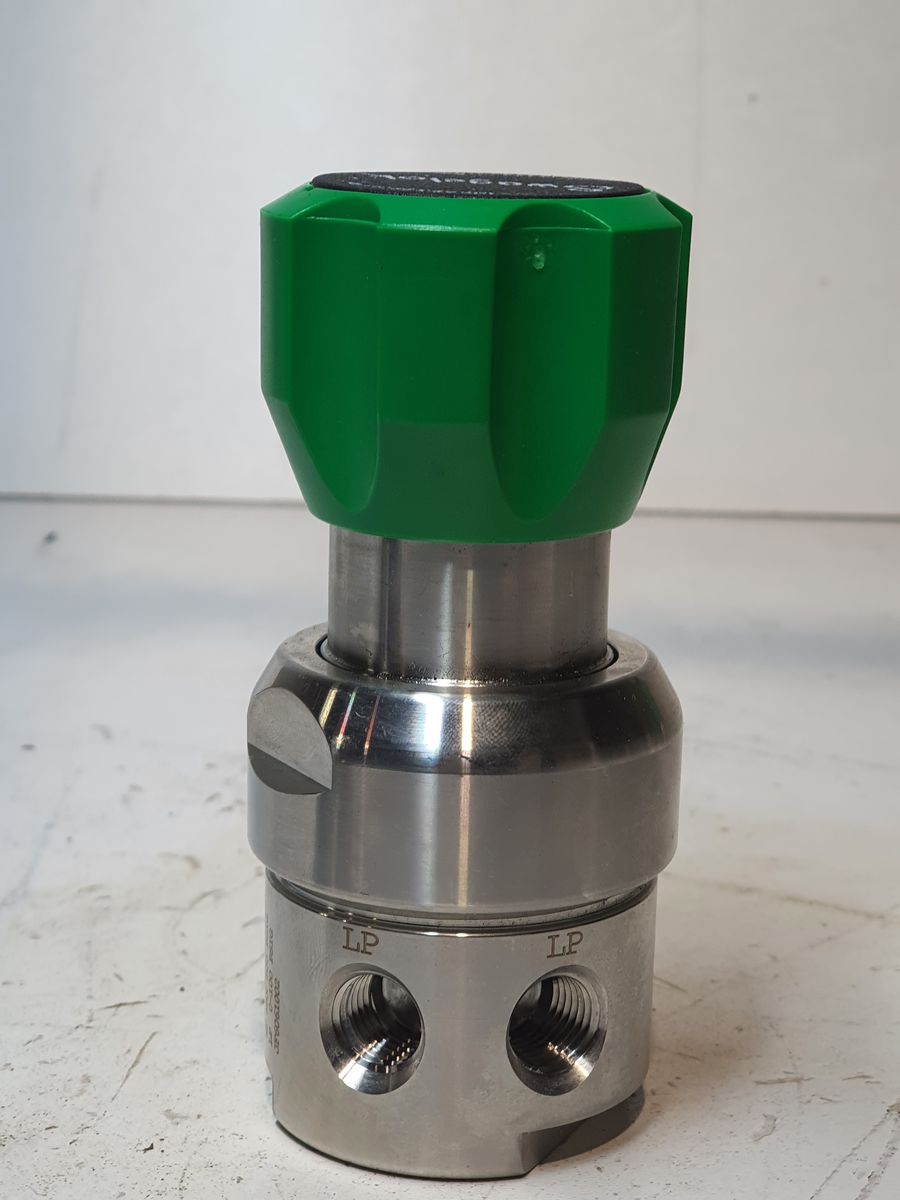

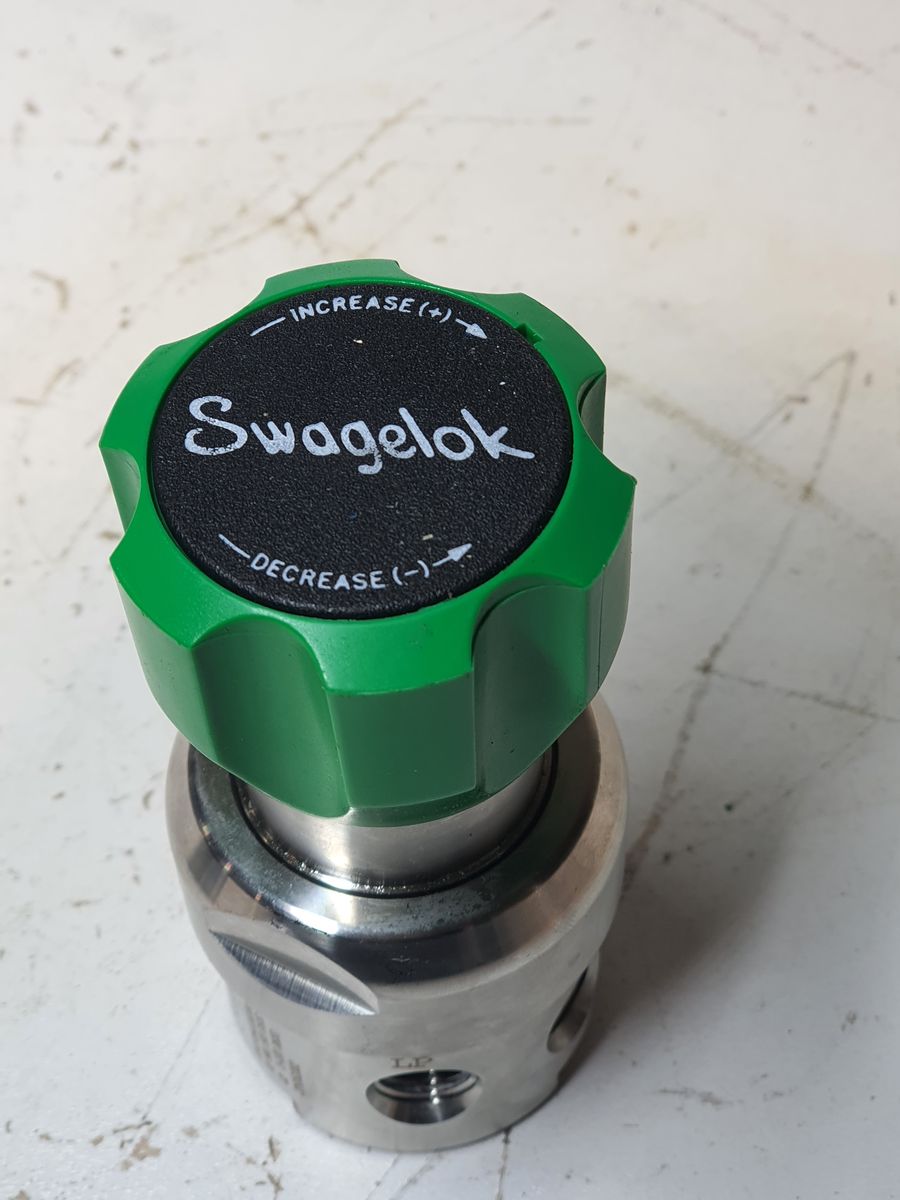

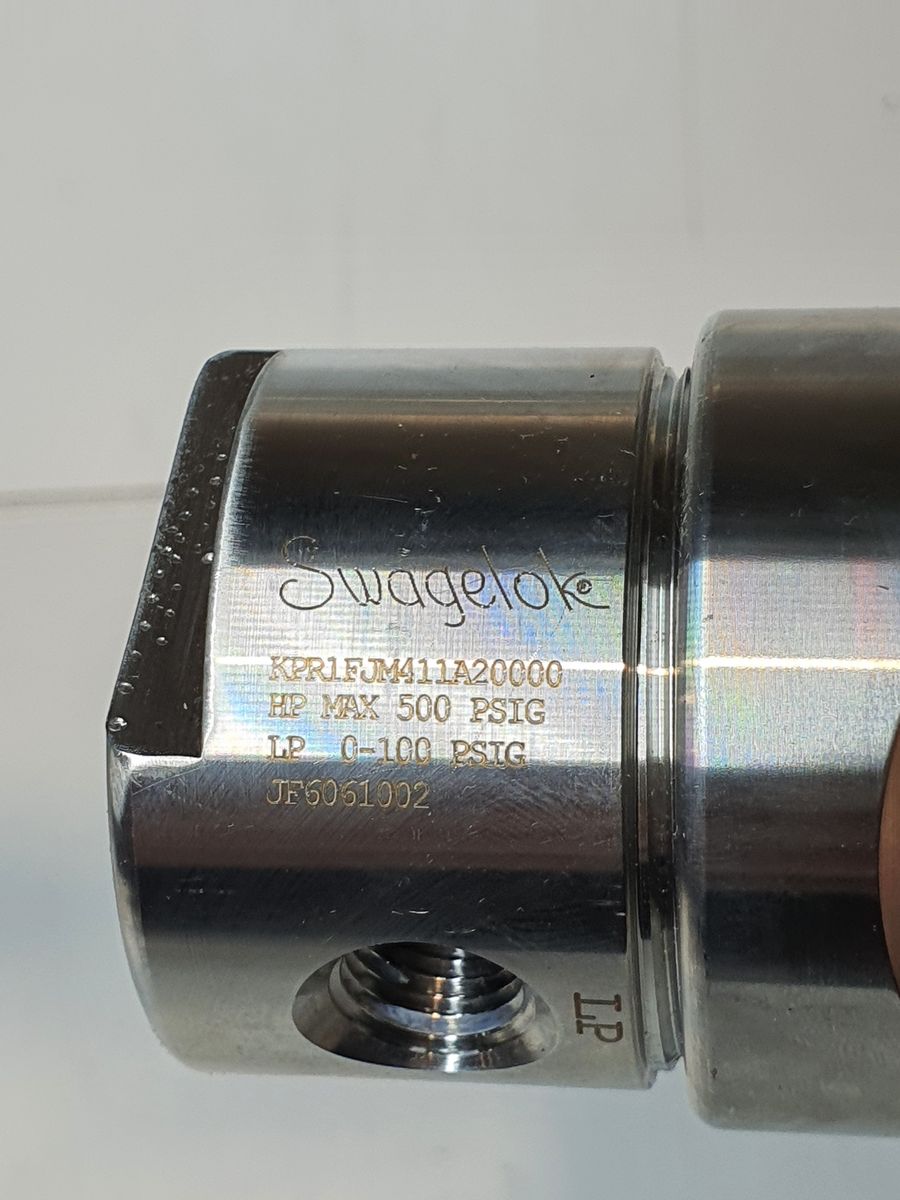

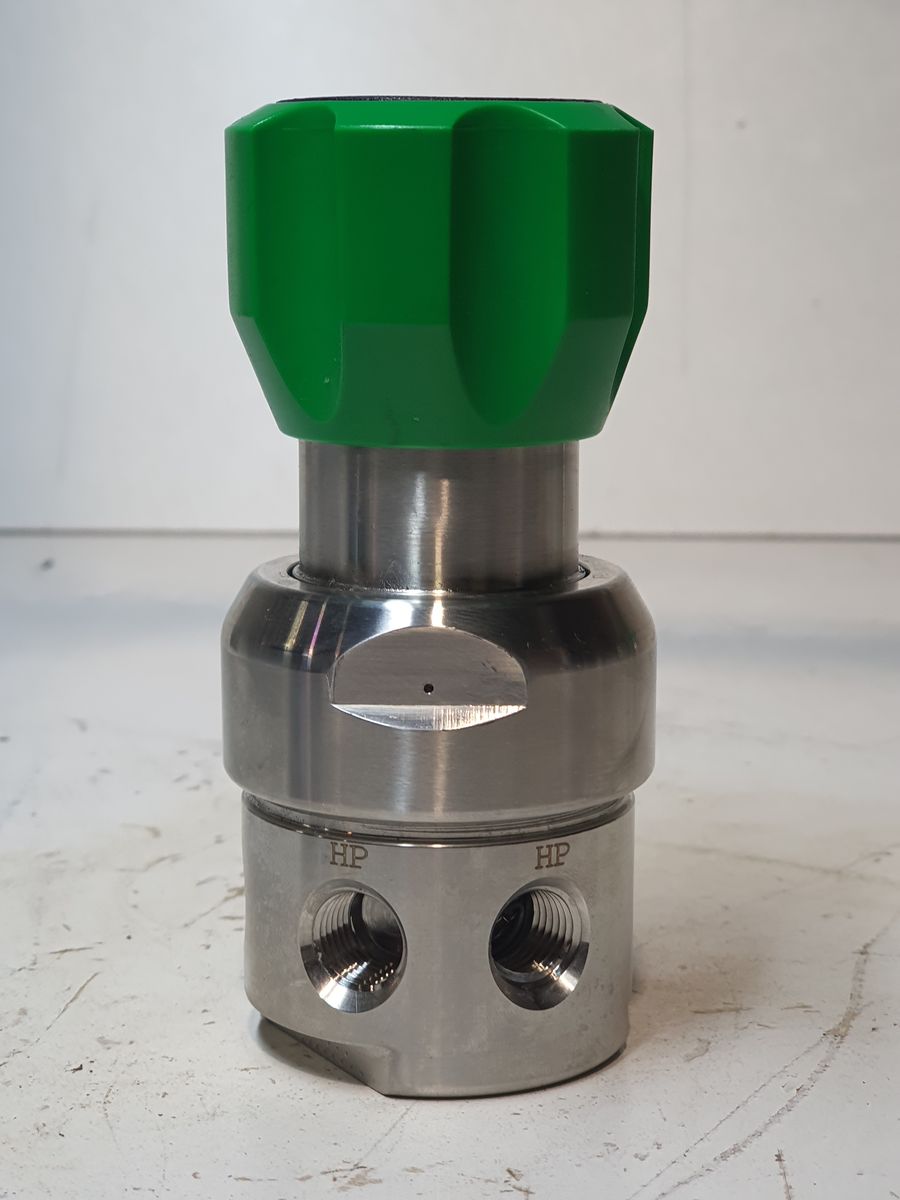

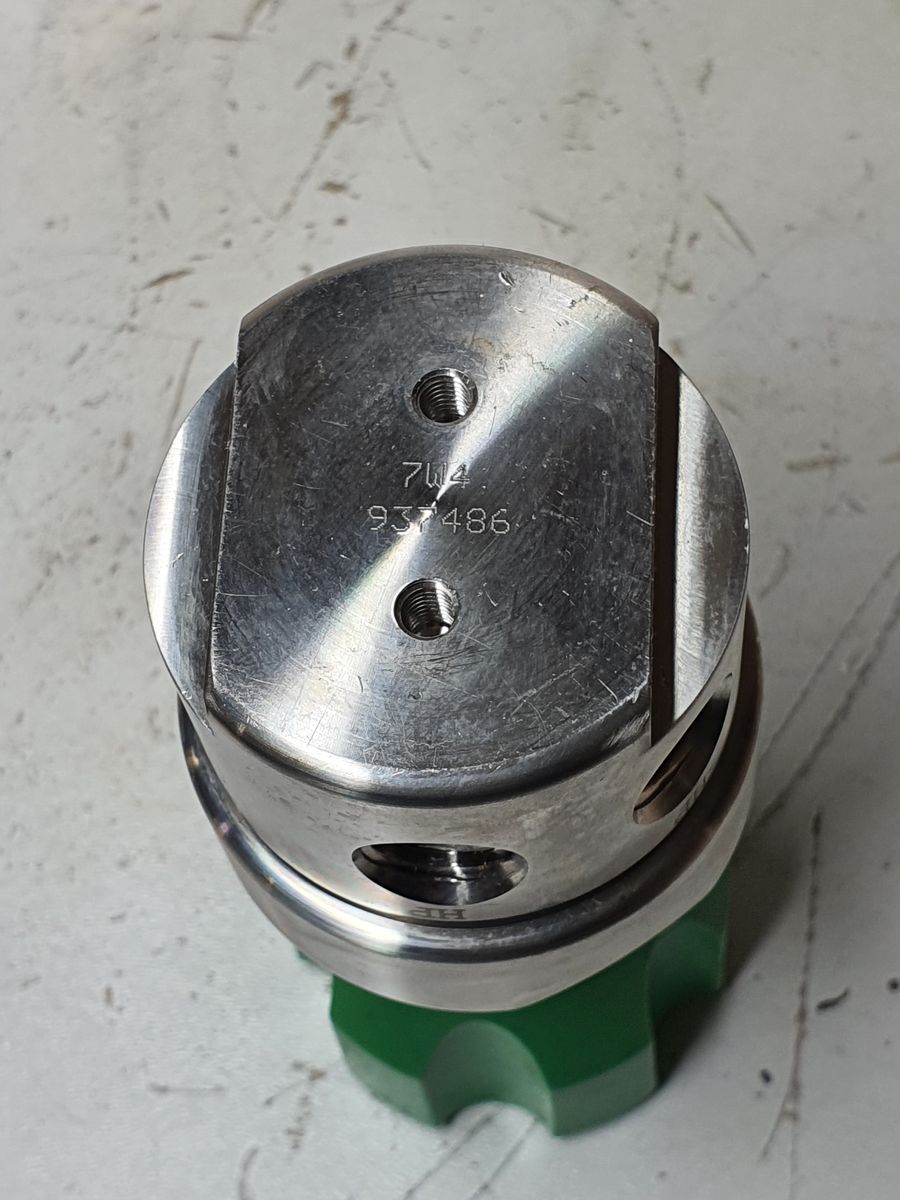

Swagelok KPR1FJM411A20000

SKU: 8029

Brak w magazynie

Cena na żądanie

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Specifications

Attribute	Value
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Flow Coefficient	0.06 Cv
Handle	Green Knob Handle
Maximum Inlet Pressure	500 psig (34.5 bar)
Maximum Temperature, °F (°C)	176 (80)
Port Configuration	F
Ports	1/4 in. Female NPT
Pressure Control Range	0 to 100 psig (6.9 bar)
Sensing Mechanism	X750 Diaphragm
