Parker Autoclave Engineers P-8546-2 3BD3HC10P2 & 201D-0681

SKU: 4002

Brak w magazynie

Cena na żądanie

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

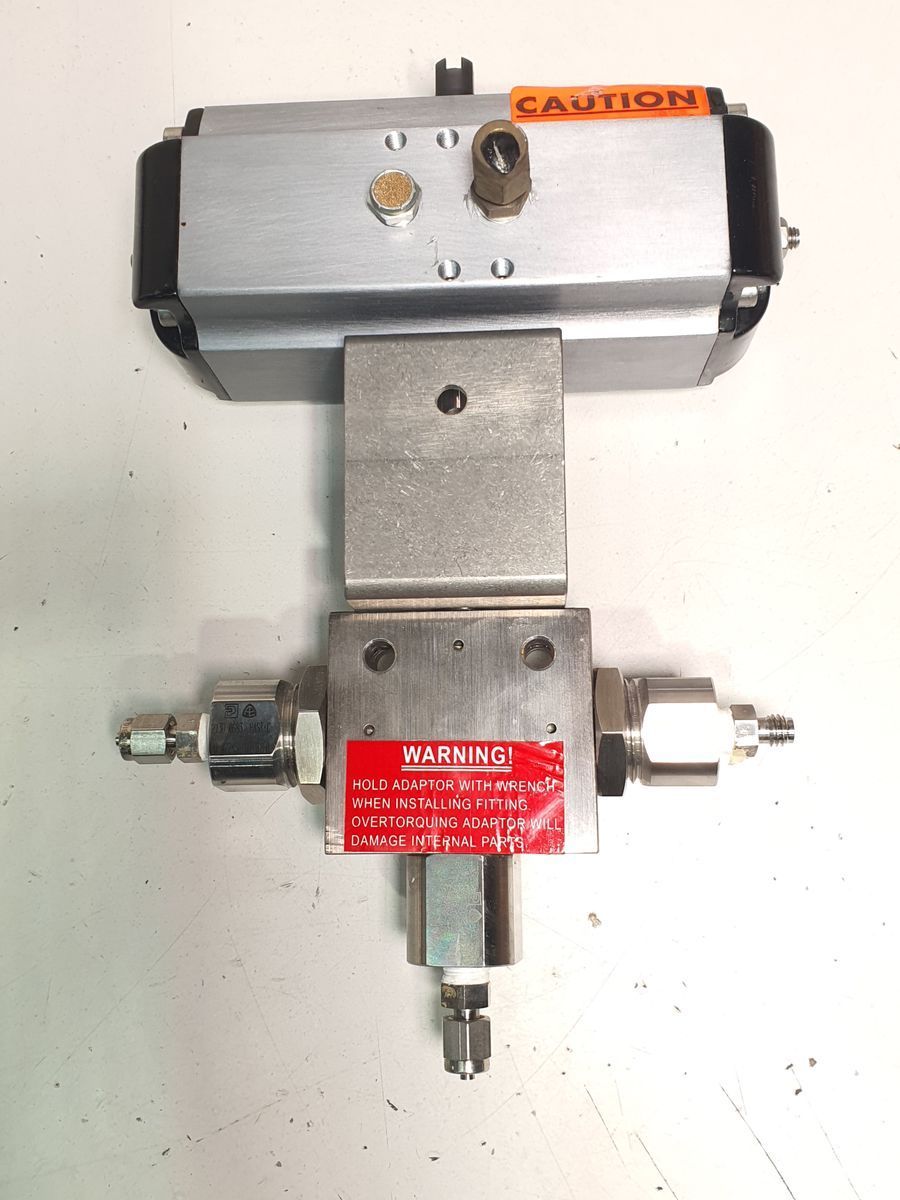

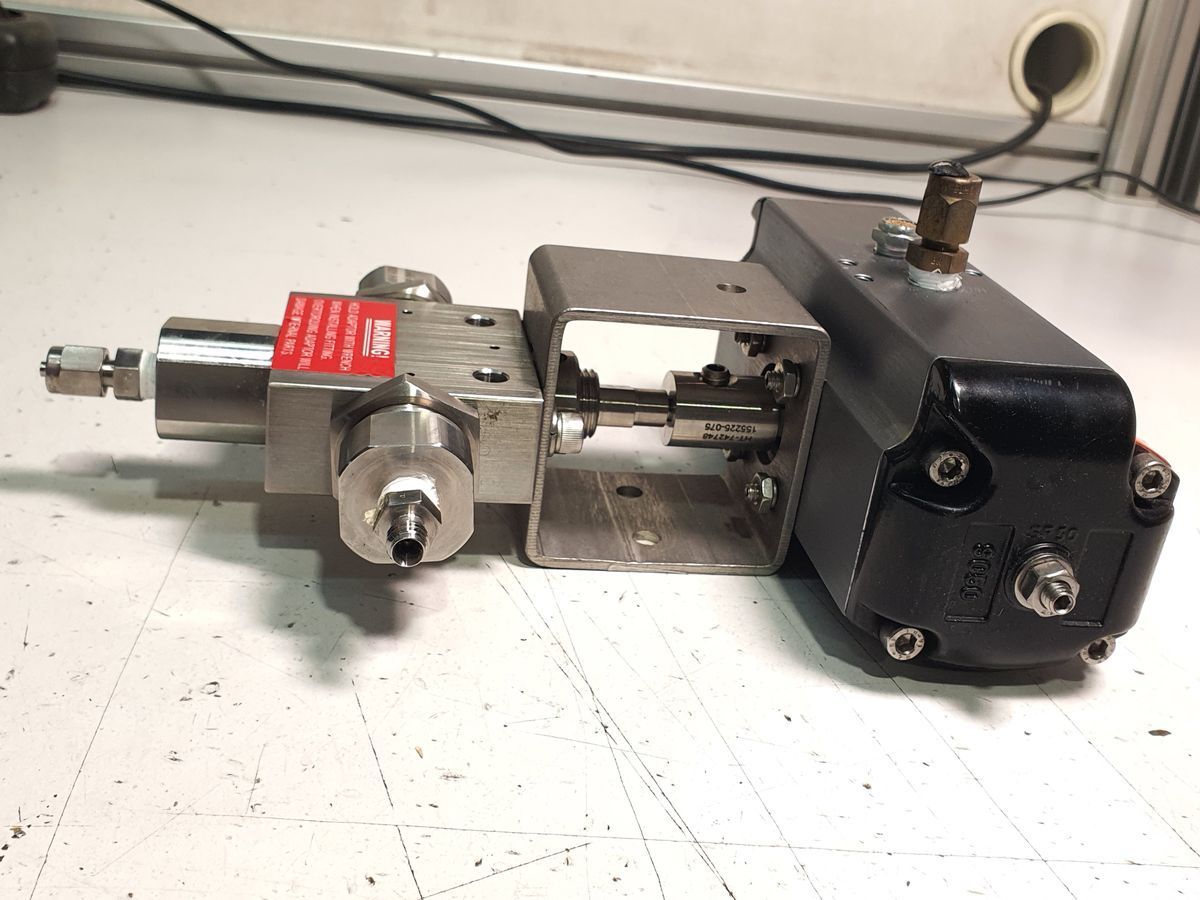

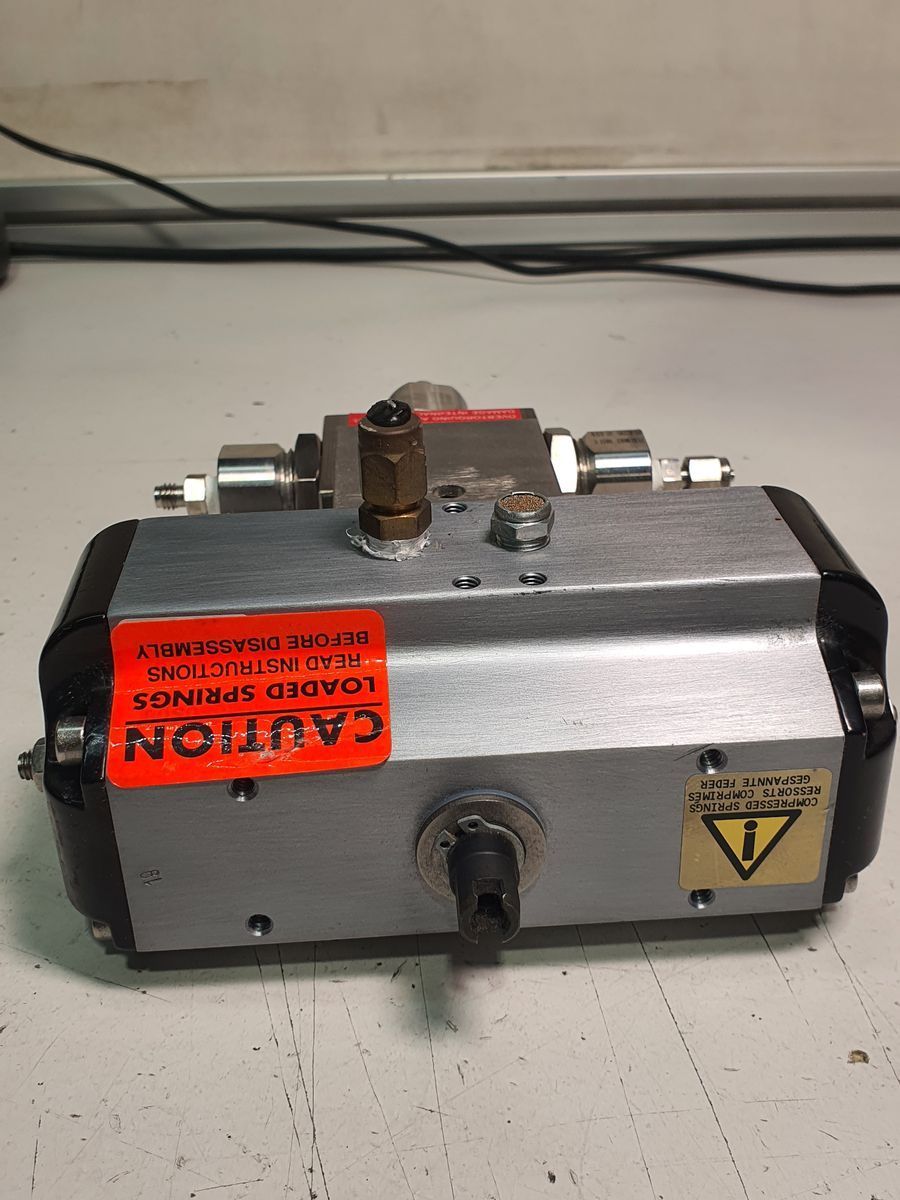

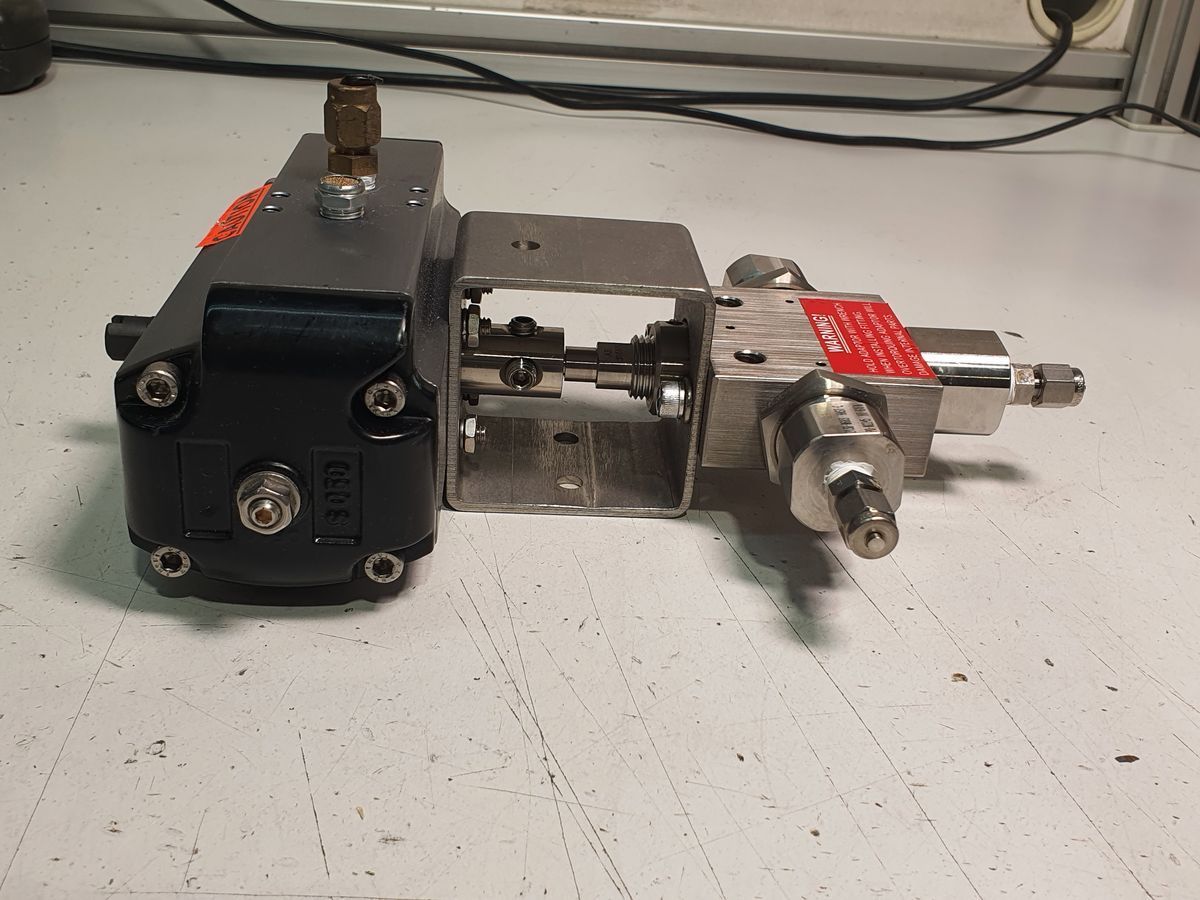

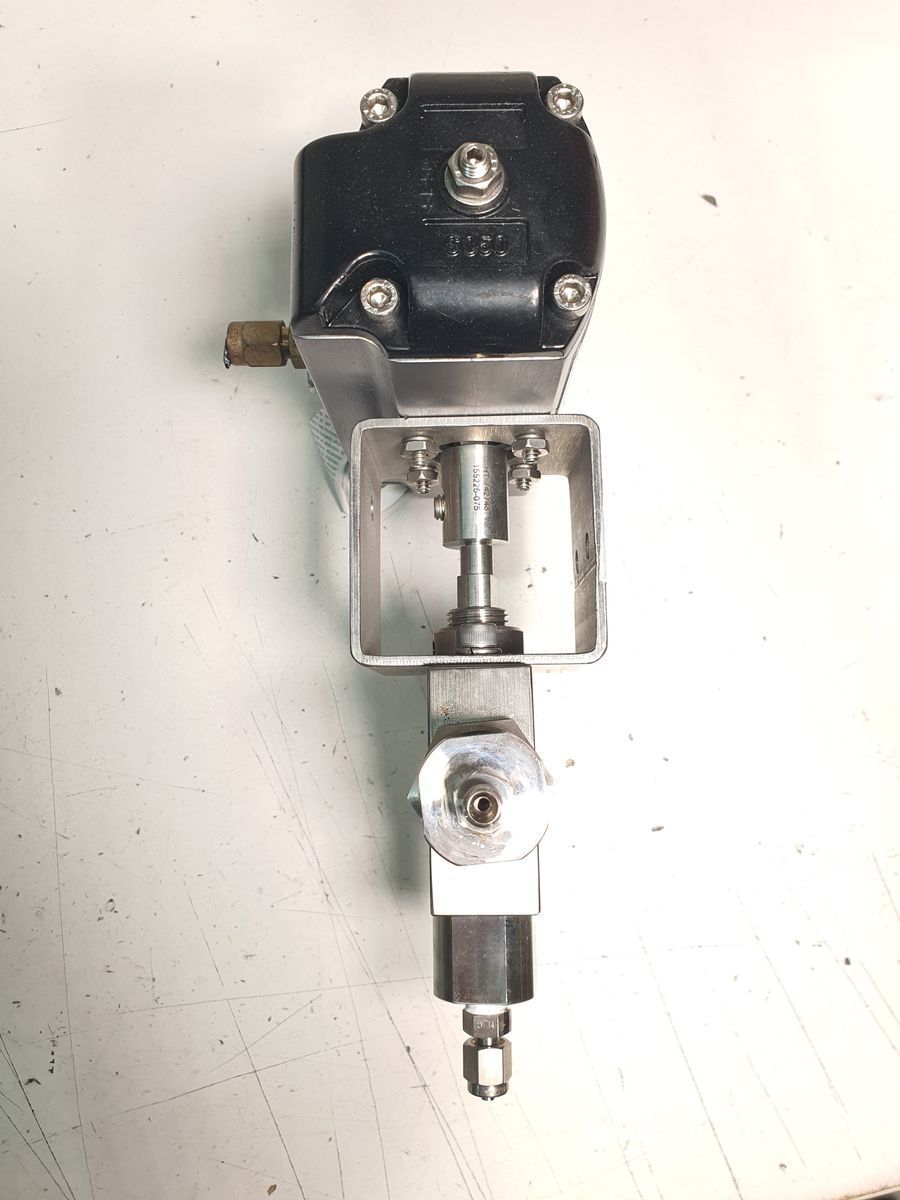

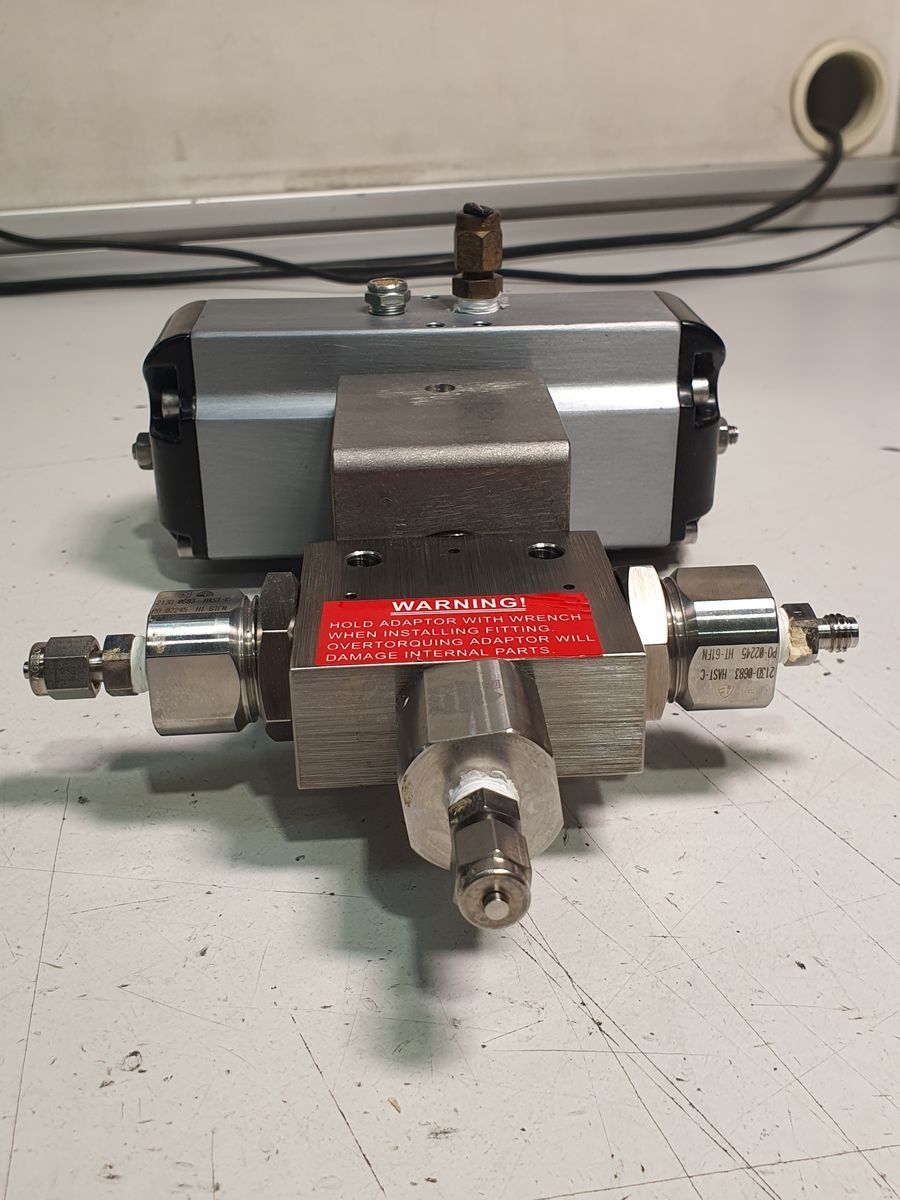

Pneumatic Actuator – Autoclave Engineers P-8546-2

Parameter	Specification
Manufacturer	Parker Hannifin Corporation
Type	Pneumatic (air) actuator
Function	Converts compressed air into mechanical motion to open/close valves remotely
Operating Modes	Air-to-open (normally closed), Air-to-close (normally open), Double-acting (optional)
Design	Piston-type actuator for reliable operation and long service life
Maximum Operating Pressure	~150 psi (6.9 bar)
Operating Temperature	−20 °F to 200 °F (−29 °C to 93 °C)
Mounting	Mounted on valve body (201D-0681) for remote on/off control using air signal
Benefits	Remote valve operation, improved safety, automation capability

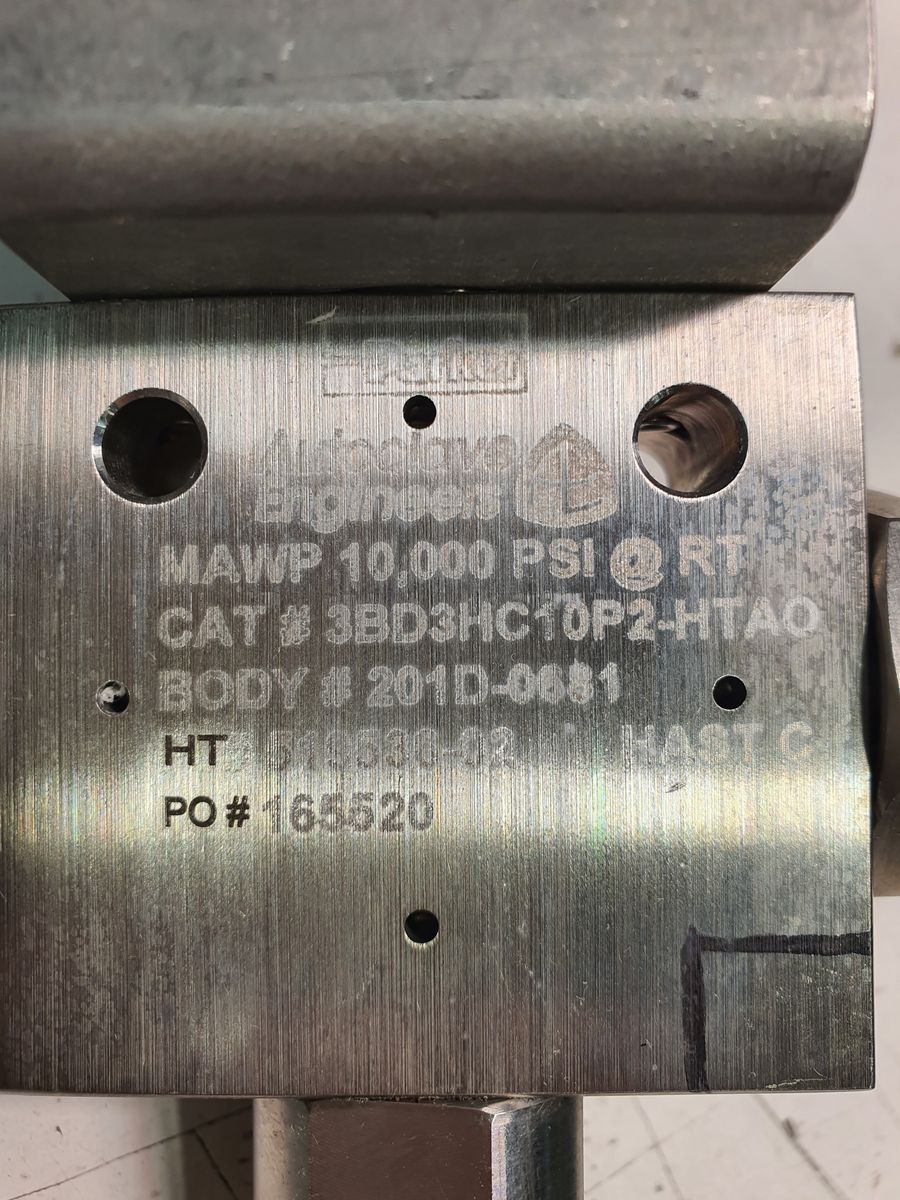

High-Pressure Valve – Autoclave Engineers 201D-0681

Parameter	Specification
Type	High-pressure industrial valve
Function	Controls fluid or gas flow in a system; actuated by pneumatic actuator
Body Material	Stainless steel, suitable for high-pressure applications
Stem Design	Non-rotating stem to prevent spindle/seat wear, enhancing durability
Sealing	Metal-to-metal seat and PTFE-encapsulated packing for leak-free operation
Pressure Rating	Up to 10,000 PSI
Temperature Rating	Up to 232 °C (450 °F) with standard PTFE packing; optional packing for higher temperature
Function in Assembly	Primary flow control element operated by pneumatic actuator
