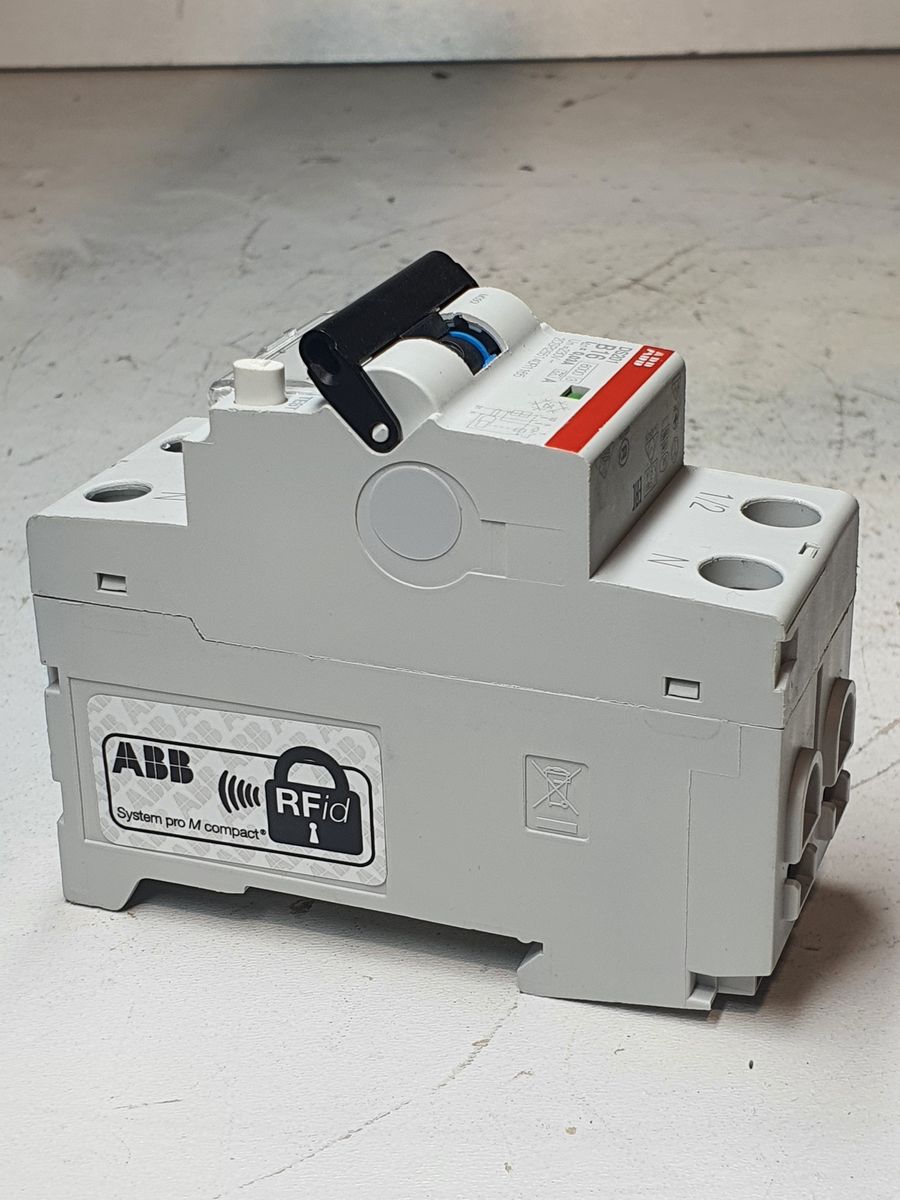

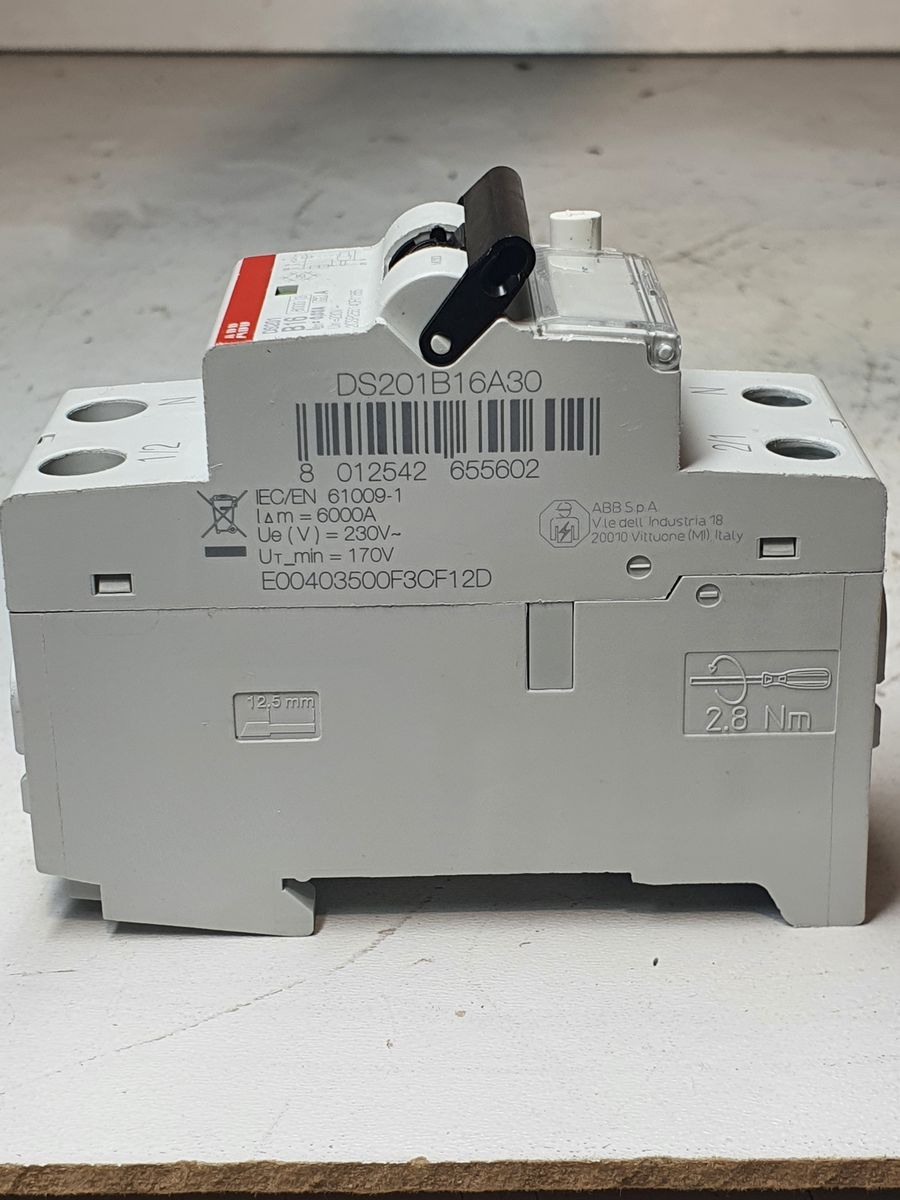

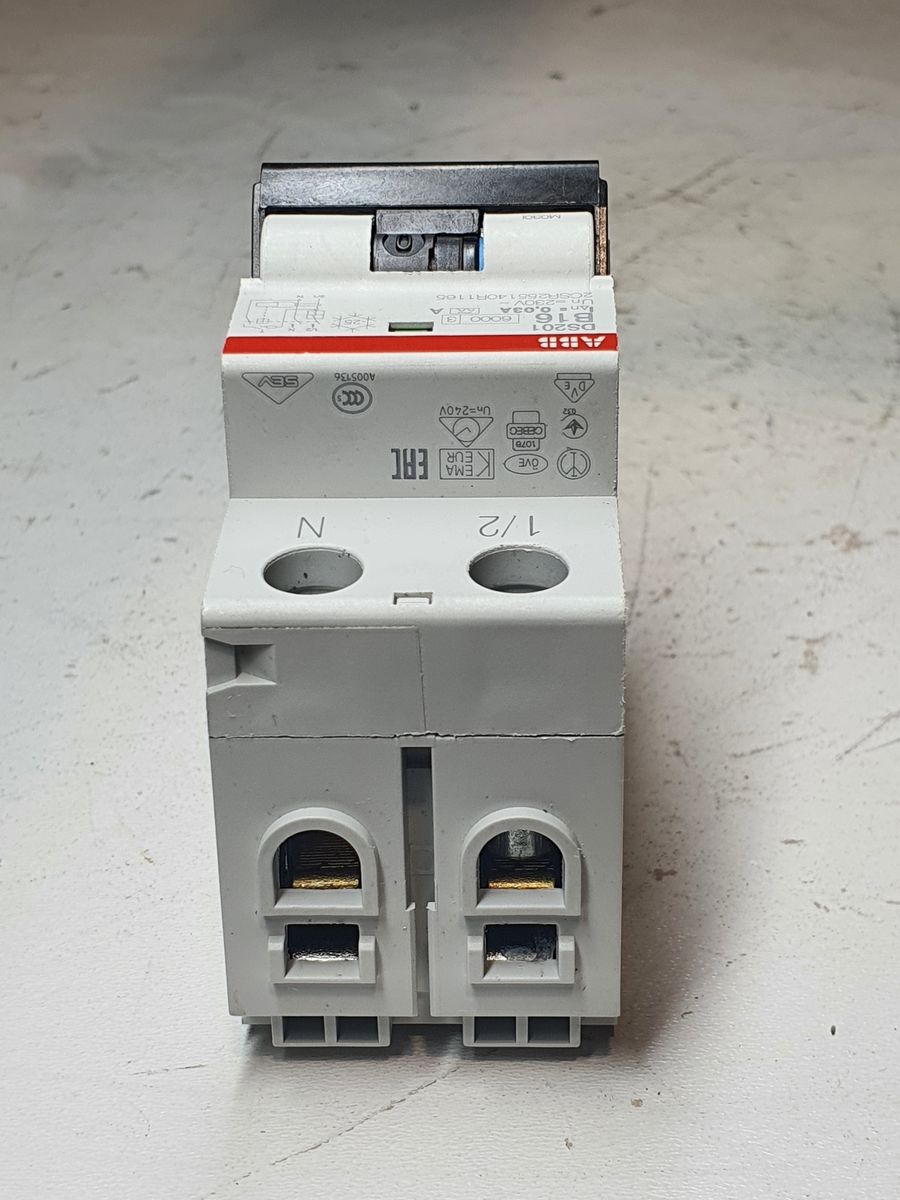

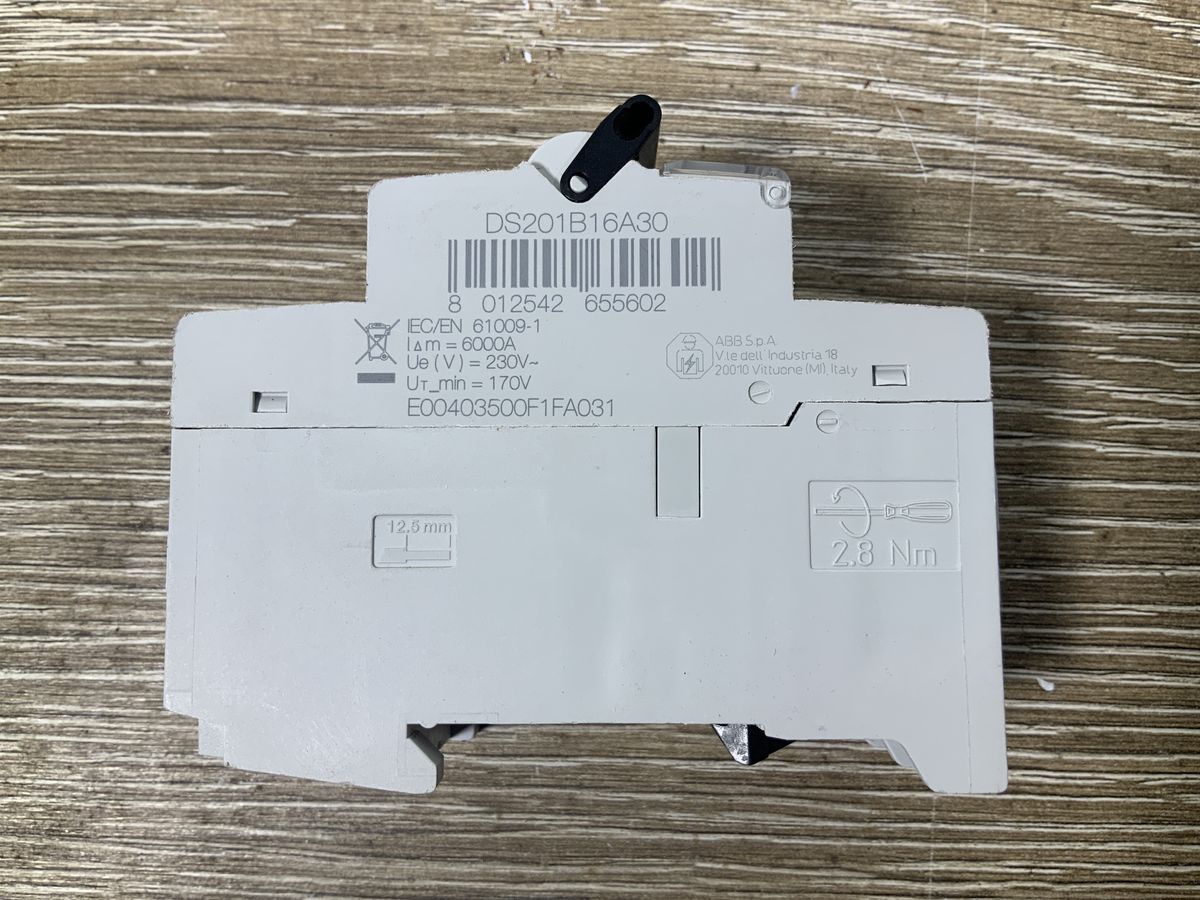

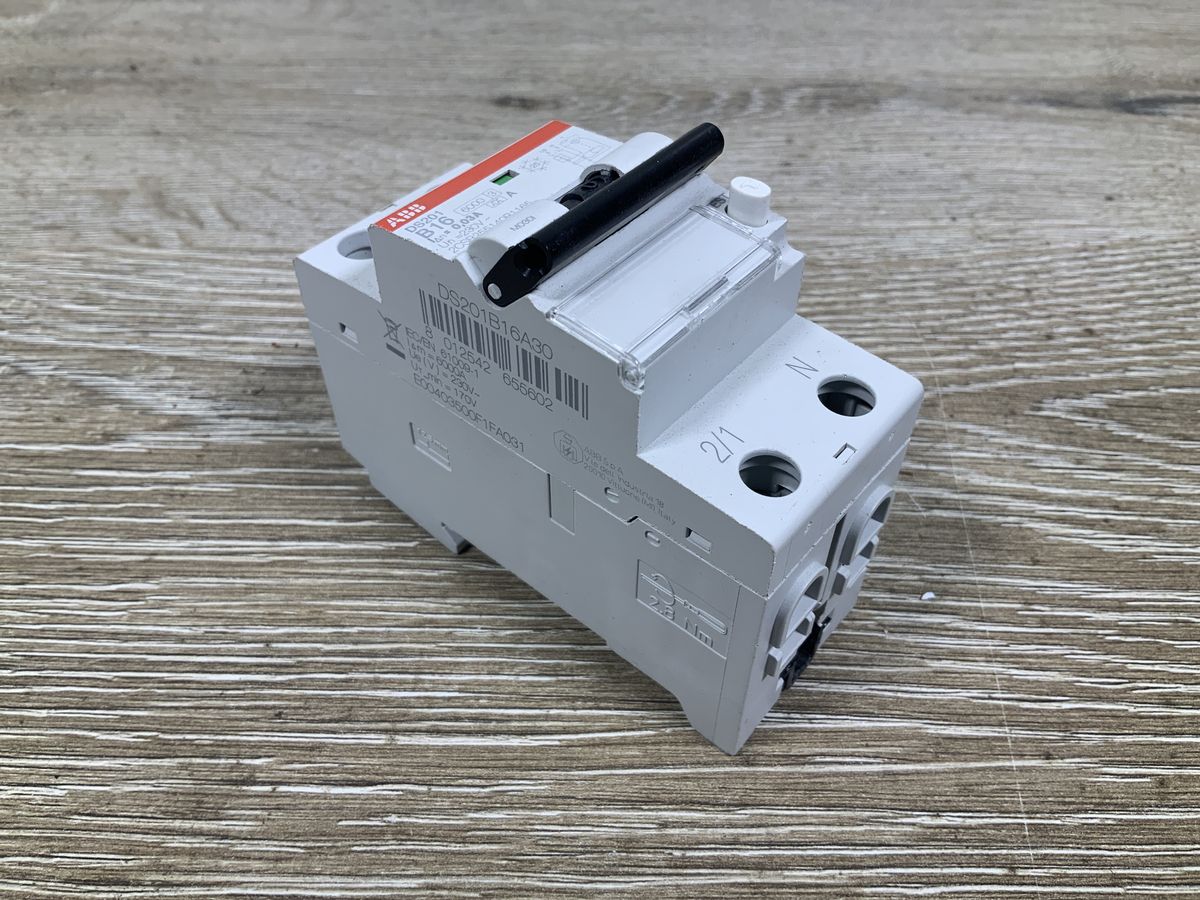

ABB DS201 B16 A30

Residual Current Circuit Breaker with Overcurrent Protection DS201 - 1P+N - 30 mA - 16 A - B - Type A Model DS201 B16 A30 Brand ABB Specification: Parameter Specification Device Type RCBO (Residual Current Circuit Breaker with Overcurrent Protection) Residual Current Type Type A Rated Current (In) 16 A Rated Residual Current 30 mA Input Voltage Type AC Nominal Frequency 50 / 60 Hz Test Voltage (Ut) 170 – 264 V Dielectric Test Voltage 2 kV Rated Ultimate Short-Circuit Capacity (Icu) 10 kA Rated Service Short-Circuit Capacity (Ics) 7.5 kA Nominal Short-Circuit Capacity 6 kA Rated Conditional Short-Circuit Current (Inc) 10 kA Rated Residual Breaking Capacity (IΔm) 6000 A (EN/IEC 61009-1) Energy Limiting Class Class 3 Electrical Endurance 10,000 cycles Mechanical Endurance 20,000 cycles Operating Characteristic Instantaneous Earth Fault Type Undelayed Number of Poles 1P + N Number of Protected Poles 1 Width in Modular Units 2 Number of Module Units (DIN Rail) 2 Neutral Terminal Position Right Status Indicator Red ON / Green OFF Fault Indication Blue flag on toggle Power Connection Arbitrary Terminal Type Screw Screw Clamp Type Failsafe bi-directional cylinder-lift Tightening Torque 2.8 N·m Cable Strip Length 12 mm Connection Capacity – Busbar 10 … 10 mm² Connection Capacity – Stranded 0.75 … 25 mm² Connection Capacity – Flexible 0.75 … 16 mm² Connection Capacity – Flexible with Ferrule 0.75 … 16 mm² Nominal Cross Section – Solid 0.75 … 25 mm² Nominal Cross Section – Multi-wire 0.75 … 16 mm² Actuator Type Toggle – Insulation Group II, Black RAL 9005, sealable ON/OFF Housing Type Insulation Group I–II, RAL 7035 Available Accessories Auxiliary contact, signal contact, shunt trip, bottom auxiliary contact, overvoltage release, motor operating device Number of Batteries 0 Power Loss (Average per Pole) 2.3 W Power Loss – Phase Pole 3.4 W Power Loss – Neutral Pole 1.2 W Total Power Loss 4.5 W Ambient Temperature (Operation) −25 … +55 °C Reference Ambient Temperature 30 °C Product Net Width 35 mm Product Net Height 85 mm Product Net Depth 69 mm Installation Depth (t2) 69 mm Product Net Weight 200 g

Specifications – DS201 B16 A30

Parameter	Specification
Device Type	RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
Residual Current Type	Type A
Rated Current (In)	16 A
Rated Residual Current	30 mA
Input Voltage Type	AC
Nominal Frequency	50 / 60 Hz
Test Voltage (Ut)	170 – 264 V
Dielectric Test Voltage	2 kV
Rated Ultimate Short-Circuit Capacity (Icu)	10 kA
Rated Service Short-Circuit Capacity (Ics)	7.5 kA
Nominal Short-Circuit Capacity	6 kA
Rated Conditional Short-Circuit Current (Inc)	10 kA
Rated Residual Breaking Capacity (IΔm)	6000 A (EN/IEC 61009-1)
Energy Limiting Class	Class 3
Electrical Endurance	10,000 cycles
Mechanical Endurance	20,000 cycles
Operating Characteristic	Instantaneous
Earth Fault Type	Undelayed
Number of Poles	1P + N
Number of Protected Poles	1
Width in Modular Units	2
Number of Module Units (DIN Rail)	2
Neutral Terminal Position	Right
Status Indicator	Red ON / Green OFF
Fault Indication	Blue flag on toggle
Power Connection	Arbitrary
Terminal Type	Screw
Screw Clamp Type	Failsafe bi-directional cylinder-lift
Tightening Torque	2.8 N·m
Cable Strip Length	12 mm
Connection Capacity – Busbar	10 … 10 mm²
Connection Capacity – Stranded	0.75 … 25 mm²
Connection Capacity – Flexible	0.75 … 16 mm²
Connection Capacity – Flexible with Ferrule	0.75 … 16 mm²
Nominal Cross Section – Solid	0.75 … 25 mm²
Nominal Cross Section – Multi-wire	0.75 … 16 mm²
Actuator Type	Toggle – Insulation Group II, Black RAL 9005, sealable ON/OFF
Housing Type	Insulation Group I–II, RAL 7035
Available Accessories	Auxiliary contact, signal contact, shunt trip, bottom auxiliary contact, overvoltage release, motor operating device
Number of Batteries	0
Power Loss (Average per Pole)	2.3 W
Power Loss – Phase Pole	3.4 W
Power Loss – Neutral Pole	1.2 W
Total Power Loss	4.5 W
Ambient Temperature (Operation)	−25 … +55 °C
Reference Ambient Temperature	30 °C
Product Net Width	35 mm
Product Net Height	85 mm
Product Net Depth	69 mm
Installation Depth (t2)	69 mm
Product Net Weight	200 g
